Washable primary‑stage air filter with aluminum mesh, acid‑alkali & high‑temperature resistant
Price range: $1.14 through $3.49 ( Not real price )

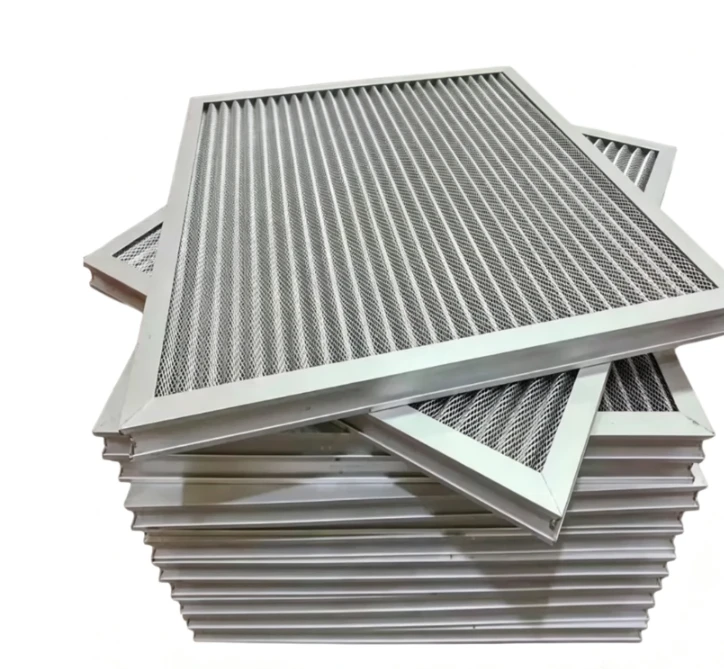

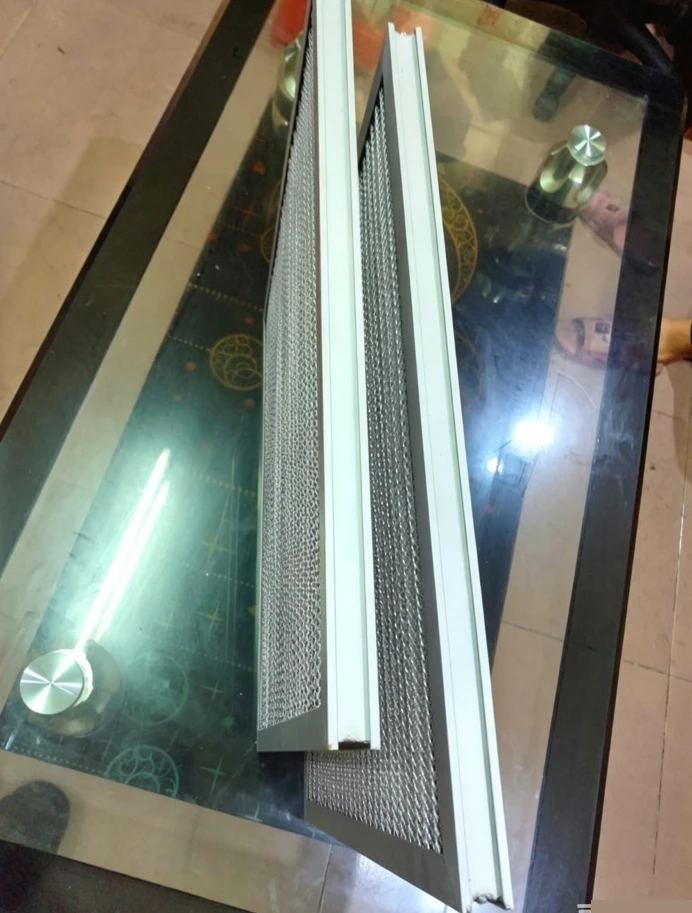

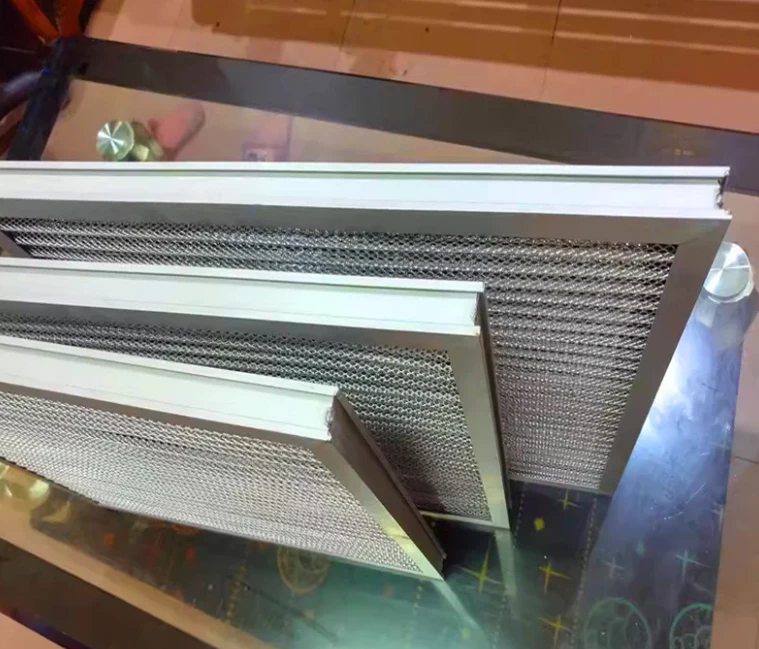

The Multi‑Layer Wavy Aluminum Mesh Pre‑Filter; washable reusable all‑metal primary air filter, high‑temperature & acid‑alkali resistant; available in 600 mm×600 mm and custom sizes from 8 mm‑50 mm thickness for HVAC, industrial ventilation and equipment intake protection.
This all‑metal aluminum mesh pre‑filter is a washable primary‑stage air filtration component for coarse dust capture. It addresses 4 key pain points of disposable pre‑filters: short service life, failure under heat/chemical exposure, high ongoing replacement cost, and heavy airflow resistance.
What can it do?
- It intercepts lint, hair, large dust particles, insect debris before they reach expensive secondary filters, coils and fan assemblies.
- Resists high‑temperature and acid‑alkali environments where non‑metal filter media degrade rapidly.
- Eliminates frequent filter‑purchase costs via wash‑and‑reuse construction.
- Preserves system airflow with low pressure‑drop multi‑layer wave mesh layout.
Product Information
| Item | Details |
|---|---|
| Product Type | All‑metal multi‑layer wavy aluminum mesh primary pre‑filter |
| Core Material | Wavy layered aluminum mesh, aluminum frame |
| Customization | Custom sizes & thicknesses supported |
| Thickness Range | 8 mm‑50 mm |
| Dimension Option | 600 mm × 600 mm, etc |
| Key Environmental Resistance | High‑temperature resistant, acid‑alkali resistant, washable & reusable |
| Filtration Role | Primary pre‑filtration for large‑particle contaminants |
Product Features
This filter combines rugged metal construction, reusability, custom sizing and environmental tolerance for heavy‑duty primary air filtration.
- Multi‑layer wavy aluminum mesh structure increases dust‑holding surface area while keeping low air‑flow resistance.
- Fully washable and reusable; no need for frequent disposable filter replacements.
- All‑aluminum metal build delivers high temperature‑resistance and acid‑alkali corrosion resistance.
- Supports multiple thickness options plus fully custom dimensional manufacturing to match existing hardware openings.
- Protects downstream filters and mechanical components from coarse particulate fouling.
- Robust metal structure resists deformation under sustained air velocity.
Application Scenarios
This pre‑filter fits commercial, industrial and specialty HVAC setups needing durable primary filtration under harsh operating conditions.
- Commercial HVAC & Air‑Handling Units: Facility maintenance teams install this as first‑stage protection inside air handlers to shield coils and secondary filters from lint and large dust in shopping malls, office buildings.
- Industrial Ventilation with heat or chemical fumes: Factory operators deploy this filter for ventilation systems exposed to high‑temperature air or mild acid‑alkali mist where disposable fibre filters break down quickly.
- Kitchen exhaust & grease‑pre‑filtration: Restaurant maintenance staff use this metal mesh filter for primary capture of large grease particles within exhaust hoods.
- Equipment cabinet / electrical enclosure cooling air intake: Automation engineers fit this filter over ventilation openings of industrial control cabinets to block dust and debris from sensitive hardware.
- Custom air‑purification equipment integrators: OEM builders of air‑cleaning machinery select this filter as a configurable primary‑stage component for their finished systems.
FAQ
Can this aluminum mesh pre‑filter replace high‑efficiency HEPA filters?
No. This is a primary‑stage pre‑filter designed for large‑particle capture only. It must work together with secondary or high‑efficiency filters for fine‑particle purification.
How should I clean this metal pre‑filter?
Remove the filter unit, rinse thoroughly with water (compressed‑air blow‑off also works), allow full air‑dry before reinstalling. Do not install while damp. Cleaning cycle depends on dust load of your environment.
Can I install this filter for equipment from different brands?
Yes. Cross‑brand compatibility is possible, provided you match the opening dimension and thickness exactly to your existing filter slot. Measure your installation cavity before ordering.
What thickness should I choose for my setup?
Match the thickness of your original filter. Thicker versions provide higher dust‑holding capacity; thinner options suit space‑restricted mounting openings. Custom sizing is available for non‑standard cavities.
What advantages does the wavy aluminum mesh pre‑filter have compared with generic metal mesh filters?
It uses precisely layered wavy aluminum mesh craftsmanship. Compared to generic flat metal screens, it delivers greater dust‑holding capacity with maintained low airflow resistance. Built for acid‑alkali and high‑temperature conditions, the filter supports bespoke custom dimensions to fit your exact hardware opening, delivering long‑term reliable reusable pre‑filtration performance for HVAC and industrial ventilation systems.
Additional information
| Option | (Sample) 600mm×600mm×21mm thickness, (Sample) 600mm×600mm×25mm thickness, 8mm thickness with custom‑size long x wide, 10mm thickness with custom‑size long x wide, 15mm thickness with custom‑size long x wide, 21mm thickness with custom‑size long x wide, 25mm thickness with custom‑size long x wide, 30mm thickness with custom‑size long x wide, 40mm thickness with custom‑size long x wide, 46mm thicknesswith custom‑size long x wide, 50mm thickness with custom‑size long x wide, Enquiry for more specifications |
|---|
