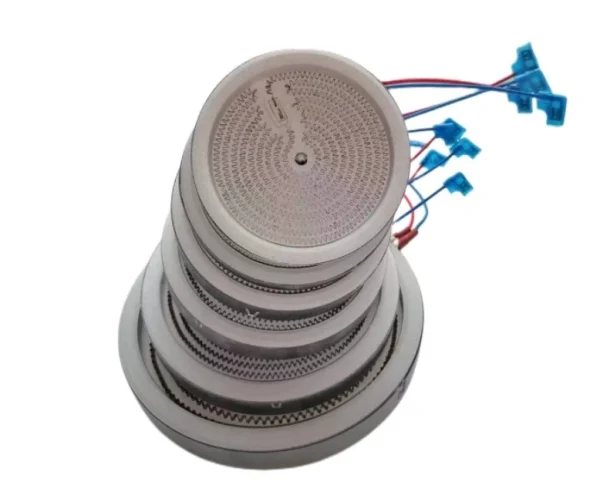

Electric ceramic heating plates for radiant cooktop stove size 10cm – 33cm
Price range: $1.00 through $25.00 ( Not real price )
Electric Ceramic Cooktop Heating Elements – 10cm-33cm. Replace or upgrade your radiant stove with our durable ceramic heating plates. Available in sizes from 10cm to 23cm & wattages from 700W to 5000W, with & without thermocouples. Options include various terminal configurations & cable types. Ideal for cooktop repair & DIY projects.
Is your electric ceramic cooktop burner not heating properly? Or are you looking to upgrade for faster, more efficient cooking? We offer a wide range of high-quality electric ceramic heating plates, designed as direct replacements or performance enhancements for your radiant cooktop stove. Available in sizes from 10cm to 33cm, and power levels from 700W to 5000W, we have the perfect Radiant Cooktop Replacement Heating Element for your needs.
Find the Right Fit: Our elements fit standard radiant cooktop stoves and come in various configurations to match your existing setup. Choose from diameters including 10cm,11cm, 12cm, 13cm, 14cm, 16.5cm, 20cm, 23cm,27cm,28cm,30cm,and 33cm (Outer diameter).
Key Features & Options:
Precise Power Selection: Select the wattage you need – 700W, 800W, 900W, 1000W, 1300W, 1500W, 2000W, 2200W, 3500W,4000W, 4500W, 5000W,etc – for optimal cooking performance.
Thermocouple Options: Many sizes are available with or without a built-in thermocouple. What’s a thermocouple? It’s a safety device that shuts off the element if it overheats or isn’t properly seated, preventing hazards. If your old element won’t heat unless pressed down, you likely need a replacement with a thermocouple.
Terminal Configurations: We offer elements with two, three, or four terminals to ensure compatibility. Check your existing element to determine the correct terminal type.
Cable Options: Choose elements with or without a pre-attached cable. Cables are available from the side or bottom of the element for easy installation. Cable lengths vary.
Thickness: Most elements are approximately 2.5cm thick, ensuring a proper fit within your cooktop.
Type A & Type B (12cm 1000W): Different internal coil designs for potentially varied heating characteristics.
Common Questions Answered:
Will this fit my cooktop? Measure your existing element’s diameter and check the wattage. Compare these measurements to our specifications.
How do I know if I need a thermocouple? If your burner only heats when you press down on it, replace it with an element including a thermocouple.
What does the wattage mean? Higher wattage generally means faster heating.

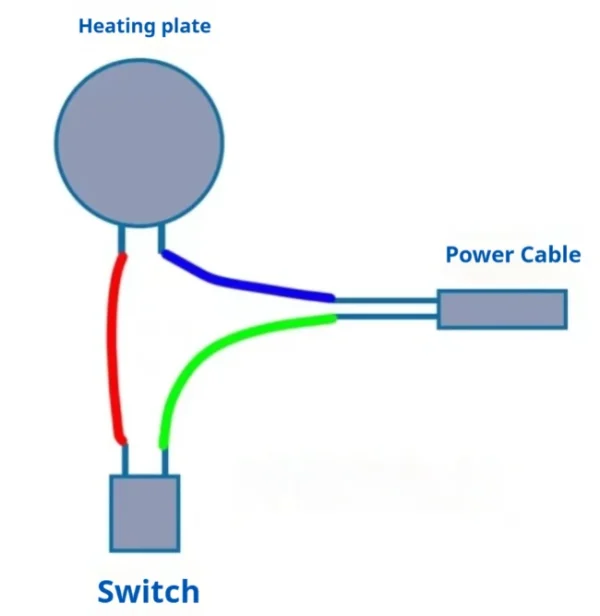

What are the terminals for? Terminals connect the element to your cooktop’s electrical system. Ensure you match the number of terminals on your old element.
Product Categories: Elements and parts for electric radiant ceramic cooktop stove.
Additional information
| Option | 10cm 700W [thickness about 2.5cm], 10cm 700W +thermocouple, 11cm 900w [thickness about 2.5cm], 11cm 900w + thermocouple [thickness about 2.5cm], 12cm 1000w (Type A), 12cm 1000w (Type A) + thermocouple, 12cm 1000w(Type B), 12cm 1000w (Type B) + thermocouple, 13cm 1300w, 13cm 1300w + thermocouple, 14cm 1300w, 14cm 1300w + thermocouple, 16.5cm 1500w, 16.5cm 1500w + thermocouple, 20cm 2000w (two terminals) with cable, 20cm 2000w (two terminals) with cable + thermocouple, 20cm 2200w (two terminals) without cable, 20cm 2200w (two terminals) with cable, 20cm 2200w (two terminals) with cable + thermocouple, 20cm 2200w (three terminals) with cable, 20cm 2200w (three terminals) with cable + thermocouple, 23cm 3500w (three terminals) with cable + thermocouple, (Cable from side) 23cm 3500w (four terminals) with cable + thermocouple, 14.5cm 1300w cable from bottom + thermocouple, 20cm 2200w (two terminals) cable from bottom + thermocouple, 23cm 3000w (four terminals) with cable, 23cm 2600w (four terminals) with cable, 23cm 3000w (three terminals) with cable, 23cm 2600w (three terminals) with cable, 23cm 4000w (four terminals) with cable, 27cm 3000w (four terminals) with cable, 27cm 3500w (four terminals) with cable, 27cm2600w (four terminals) with cable, 27cm 4000w (four terminals) with cable, 27cm 4500w (four terminals) with cable, 27cm 5000w (four terminals) with cable, 28cm 3000w (four terminals) with cable, 28cm 3500w (four terminals) with cable, 28cm 2600w (four terminals) with cable, 28cm 4000w (four terminals) with cable, 28cm 4500w (four terminals) with cable, 28cm 5000w (four terminals) with cable, 30cm 5000w (four terminals) with cable, 33cm 5000w (four terminals) with cable, Enquiry for more specifications |
|---|
