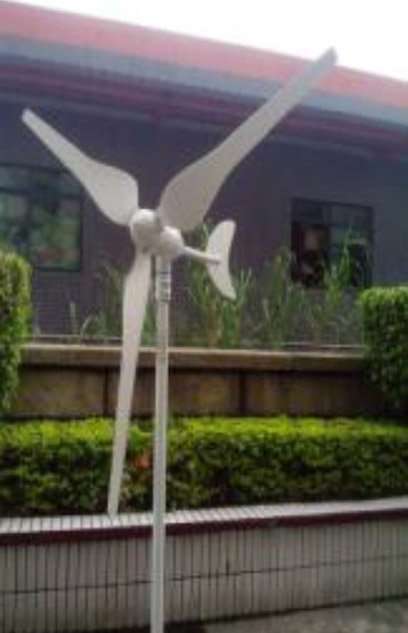

Wind Turbine System 100W
Wind Turbine System 100W
Characteristics of Wind Turbine System 100W:
1.Portable, using ultra-light composite materials and engineering
plastics, the weight of 2500g, installation or disassembly in 3
minutes and a small space occupied
2.The machine head can be arbitrary rotated with anti-winding
devices

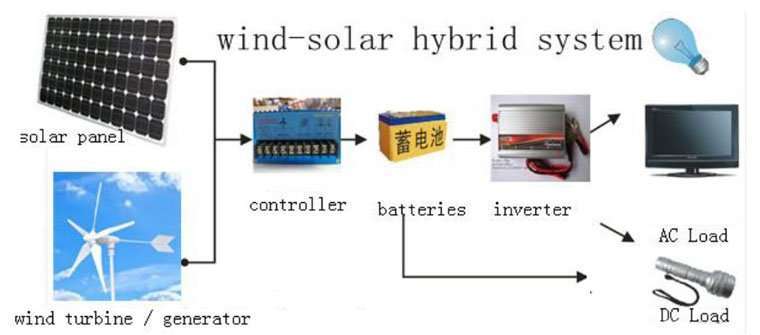

3.Large capacity, to be Wind-Solar Hybrid power supply system
with solar cells, providing 0.6-1.5 degrees power in 24 hours to
meet the need of portable computers,Instrument, mobile phones
and lighting
Product Specification for wind turbine system Model-Z100:
Wind generator part | Model | Z-50W | Z-100W |
| Name | Hyacinth | Hyacinth | |
| Rated power | 50W | 100W | |
| Rated DC voltage | DC 12V/24V | DC 12V/24V | |
| Rated current | 4.4A/2.2A | 8.8A/4.4A | |
| Rated speed | 1050r/m | 860r/m | |
| Max power | 65W | 115W | |
| Number of blade | 3 pcs | 3 pcs | |
| Starting wind speed | 3m/s | 3m/s | |
| Cut-in wind speed | 3.5m/s | 3.5m/s | |
| Cut-out wind speed | 15m/s | 15m/s | |
| Security wind speed | 45m/s | 45m/s | |
| Rated wind speed | 12m/s | 12m/s | |
| Engine | Three-phase permanent magnel generator | Three-phase permanent magnel generator | |
| Rotor diameter | 830mm | 1050mm | |
| Blade material | Carbon fiber reinforced plastics | Carbon fiber reinforced plastics | |
| Output line anti-winding device | Overall three-phase commutator | Overall three-phase commutator | |
| Over-speed wind protection | Tip stall protection + turned protection + Electromagnetic brake | Tip stall protection + turned protection + Electromagnetic brake | |
| Life span | 10 years | 10 years | |
| Equipment surface protection | Galvanization plastic coating | Galvanization plastic coating | |
| Working temperature | -40°C-70°C | -40°C-70°C | |
| N.W. | 2.6kg | 2.8kg | |
| Packing material | Carton box and foam material | Carton box and foam material | |
| packing dimension | 645*280*240mm | 645*280*240mm | |
| G.W. | 3.2kg | 3.5kg | |
Tower part | |||
| G.W | 17kg | 17kg | |
Controlling circuit equipment | Controller*Inverter | 100W | 100W |
| Packing material | Carton box and foam material | Carton box and foam material | |
| G.W. | 2.5kg | 2.5kg | |
