Sanhua LPF Series Electronic Expansion Valve

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve

Price range: $0.97 through $3.68 ( Not real price )

The Sanhua LPF Series Electronic Expansion Valve is specifically engineered for precise flow control in modern refrigeration systems. Featuring an advanced soft-sealing seat design, it achieves complete tight shut-off equivalent to a solenoid valve, reliably preventing refrigerant migration to the evaporator or compressor during shutdown. Built with optimized internal flow channels…

SKU: e180e98a Category: Brand:
Our products are liked and shared by:

19
Shares & Likes

The Sanhua LPF Series Electronic Expansion Valve is specifically engineered for precise flow control in modern refrigeration systems. Featuring an advanced soft-sealing seat design, it achieves complete tight shut-off equivalent to a solenoid valve, reliably preventing refrigerant migration to the evaporator or compressor during shutdown. Built with optimized internal flow channels, it ensures fast operation, substantial energy savings, and whisper-quiet acoustic performance.

Brand: Sanhua

Product Series: LPF Series, Includes: Valve body LPF08‑001 | Valve body LPF10‑002 | Valve body LPF14‑002 | Valve body LPF14‑003 | Valve body LPF18‑002 | Valve body LPF24‑002 | Valve body LPF30‑001 | Valve body LPF32‑001 | Valve body LPF45‑001 | LPF03‑001 + Coil | Valve body LPF08‑001 + Coil | Valve body LPF10‑002 + Coil | Valve body LPF14‑002 + Coil | Valve body LPF14‑003 + Coil | Valve body LPF18‑002 + Coil | Valve body LPF24‑002 + Coil | Valve body LPF30‑001 + Coil | Valve body LPF32‑001 + Coil | Valve body LPF45‑100 + Coil | LPF52‑100 + Coil | LPF55‑100 + Coil | Valve body LPF62‑100 + Coil | Coil, cable length 1.5m | Coil, cable length 3m | Controller SEC611‑HD

Product Type: Electronic Expansion Valve

Flow Direction: Uni-Flow

Closed Flow Rate: <1 mL/min (under 1.0 MPa)

Operating Pressure: Up to 9 MPa (LPF…T Series)

Compatibility: Sanhua SEC Series Controller

Seat Design: Soft-Sealing Seat

Highlights

  • FLOW DIRECTION: UNI-FLOW; THE FLOW RATE IS <1 ML/ MIN WHEN THE VALVE IS CLOSED (UNDER 1.0MPA)
  • LPF…T SERIES CAN BEAR 9MPA OPERATING PRESSURE, SUITABLE FOR CO2 SYSTEM
  • FLOW CHANNEL OPTIMIZATION, LOWER NOISE
  • FAST OPERATION, ENERGY SAVING
  • COMPATIBLE WITH SANHUA CONTROLLER SEC SERIES

Compatibility

Compatible with Sanhua SEC series controllers and suitable for commercial refrigeration applications, including CO2 systems when using the high-pressure LPF…T series.

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve 1

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve 2

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve 3

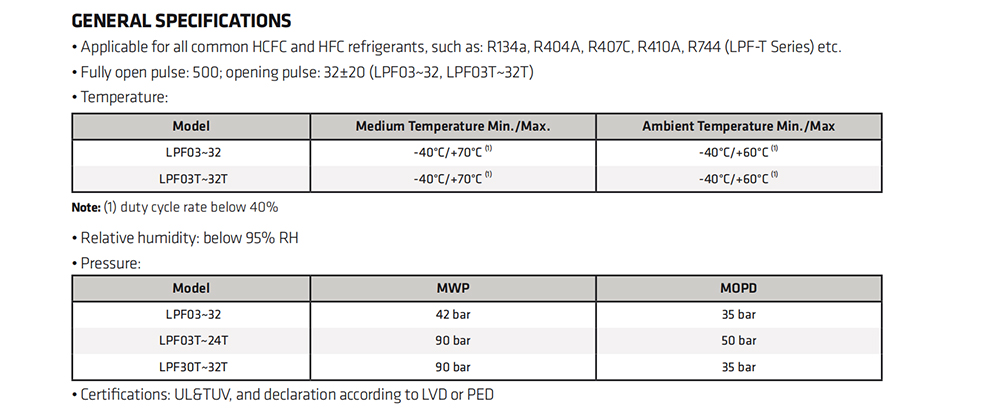

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve 4

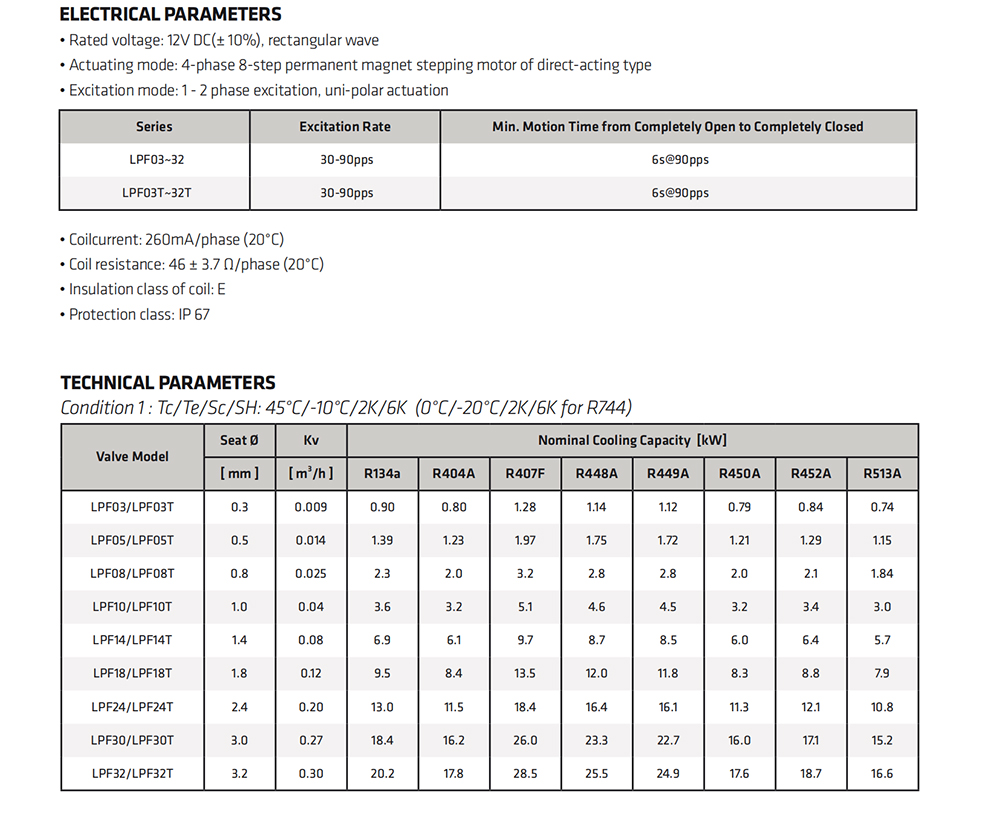

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve 5

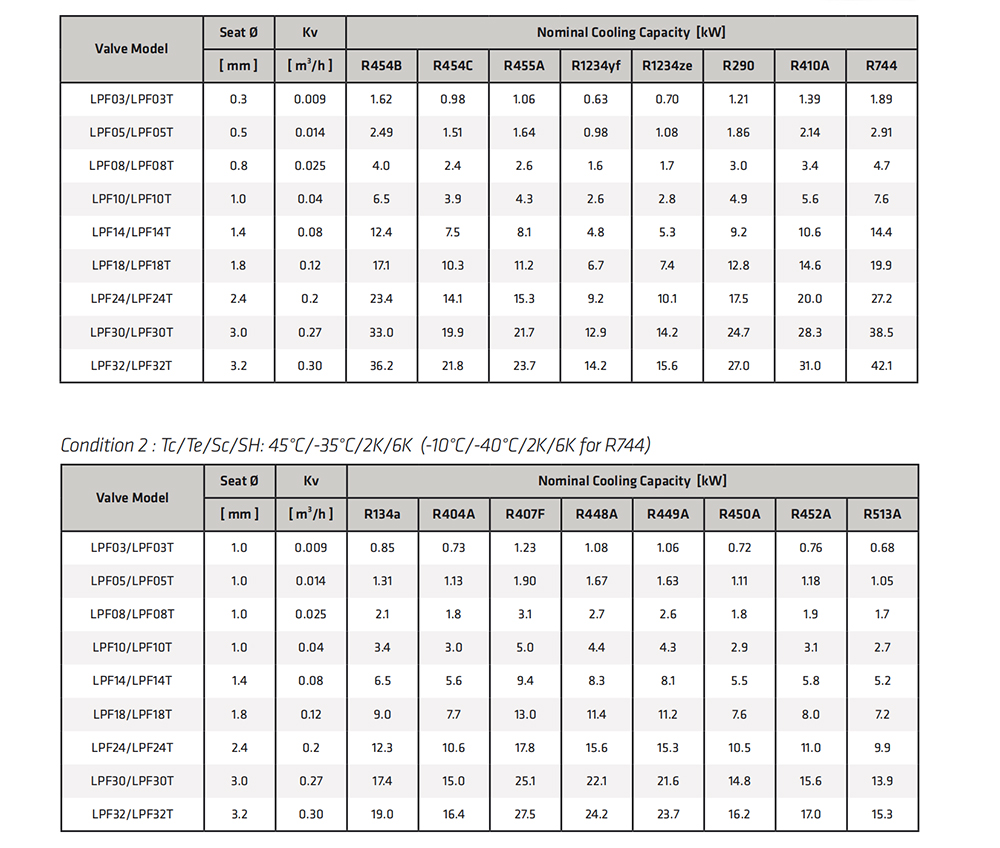

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve 6

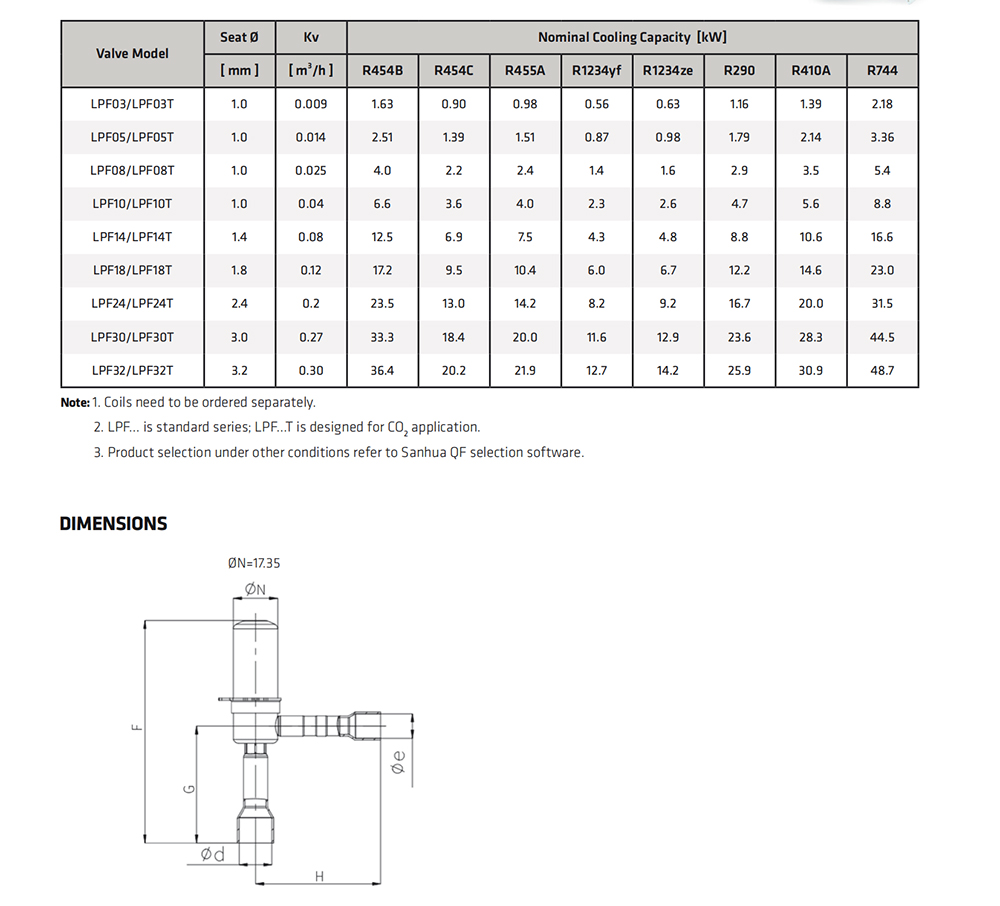

Sanhua LPF03/05/08/10/14/18/24/30/32 Electronic Expansion Valve 7

FAQ

What is the primary function of the Sanhua LPF Series valve?

It is designed for refrigeration systems to provide accurate refrigerant flow regulation and ensure tight shut-off equivalent to a solenoid valve.

Does the valve prevent refrigerant migration when closed?

Yes, the soft-sealing seat design provides an airtight closure with an internal leakage rate under 1 mL/min at 1.0 MPa, stopping refrigerant migration to the evaporator or compressor.

Can this valve be used in high-pressure CO2 refrigeration systems?

The LPF…T series variant supports operating pressures up to 9 MPa, making it suitable for CO2 refrigeration systems.

What controllers are compatible with the LPF series?

The valve is compatible with Sanhua SEC series electronic expansion valve controllers.

What flow configuration does the valve use?

The valve operates in a uni-directional (uni-flow) configuration.

Quick Navigation:
1 Highlights
2 Compatibility
3 FAQ
3.1 What is the primary function of the Sanhua LPF Series valve?
3.2 Does the valve prevent refrigerant migration when closed?
3.3 Can this valve be used in high-pressure CO2 refrigeration systems?
3.4 What controllers are compatible with the LPF series?
3.5 What flow configuration does the valve use?

Additional information

Option

Valve body LPF08‑001, Valve body LPF10‑002, Valve body LPF14‑002, Valve body LPF14‑003, Valve body LPF18‑002, Valve body LPF24‑002, Valve body LPF30‑001, Valve body LPF32‑001, Valve body LPF45‑001, LPF03‑001 + Coil, Valve body LPF08‑001 + Coil, Valve body LPF10‑002 + Coil, Valve body LPF14‑002 + Coil, Valve body LPF14‑003 + Coil, Valve body LPF18‑002 + Coil, Valve body LPF24‑002 + Coil, Valve body LPF30‑001 + Coil, Valve body LPF32‑001 + Coil, Valve body LPF45‑100 + Coil, LPF52‑100 + Coil, LPF55‑100 + Coil, Valve body LPF62‑100 + Coil, Coil, cable length 1.5m, Coil, cable length 3m, Controller SEC611‑HD, Enquiry for more specifications
