Refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML

$1.00

Supply refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML,exported by China manufacturer.Widely used on refrigeration field for copper or aluminium tipe flaring.

Features:

  • Excellent materials create perfect quality and long service life;
    There is a storage box which you can store these tools, easy to carry;
    The tube expander is suitable for 3/8″ to 1-5/8″ or 10mm to 42mm tube specification;
    Can be used for copper pipes and aluminum pipes;
    Including 11pcs expander heads, convenient to replace;
  • Place of Origin: China
  • Sell to worldwide, Ship by air plane or by sea boat;

Send Enquiry Message

The product is liked & shared by worldwide clients:



Models and Details for “Refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML”

There are 4 options for you to choose as following:

Kit Code.Including the following part:
CT-300ANormalct-300a+ct-107+ct-209For inch:3/8″,1/2″,5/8″,3/4″,7/8″,1″,1-1/8″ O.D.Tubing.
CT-300MNormalct-300m+ct-107+ct-209For metric:10,12,16,19,22,25,28mm O.D.Tubing.
CT-300ALNewct300a+ct-209+wk-650+ct-207+ct-300plFor inch:3/8″,1/2″,5/8″,3/4″,7/8″,1″,1-1/8″ ,1-1/4″,1-3/8″,1-1/2″,1-5/8″O.D.Tubing.
CT-300MLNewct300m+ct-209+wk-650+ct-207+ct-300plFor metric:10,12,16,19,22,25,28,32,35,38,42,mm O.D.Tubing.



Products Description:

Refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML 1

flaring tools CT-300ML

Refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML 2

SIX EASY STEPS:

1.Deburr inside of tube.
2.Anneal the tube if necessary(for hard or thickwall tube).
3.Screw the expander head on expander.
4.Put the end of tube on expander head.
5.Tighten the relief valve knob to‘On’position then pump handle until tube is expanded to the end.
6.Turn the relief valve knob to‘OFF’possition to loosen expander head.Remove expanded tube.

Advantage

No copper coupling needed any more,Save cost of material.
Only one side need to be welded.Save cost and reduce possibility of leak.
Manual hydraulic mechanism design can expand tubings from 10mm to 42mm diameter.
Used for soft copper tube,Alumimum tube,Titanium tube,soft steel and other soft tube.

Refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML 3

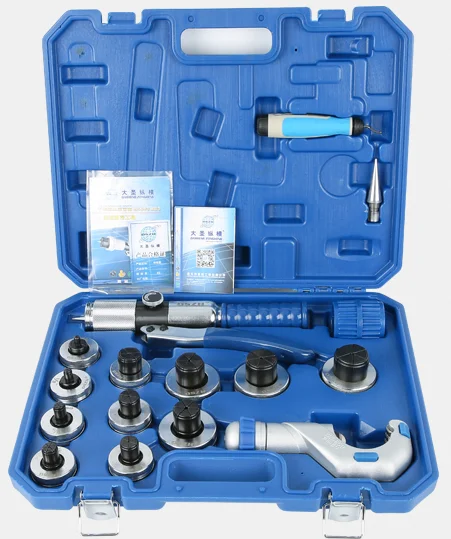

Refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML 4

How to purchase “Refrigeration tools pipe flaring tool kit manual hydraulic tube expander CT-300AL,CT-300ML”

  • The tool kit is available for retail and wholesale;
  • The place of origin is in China,when you buy one or two,please consider freight(by air or by sea) into the cost;
  • Accept bulk order with Container delivery;
  • Please contact us online (click here) Or send inquiry message to our email:  sale@smartclima.com or hvac@smartclima.com



Additional information

Brand Name

None, DSZH

Origin

Mainland China

Certification

CE, CE

Warranty

no

Place of Origin

Zhejiang, China

Model Number

CT-300AL

Product name

Hydraulic tube expander

one carton

6pcs

Delivery time

2-3 working days
