Plastic Camlock Coupling Fittings And Adapters

Camlock fittings have become a go-to solution for connecting hoses and pipes in various industrial applications. They are quick, reliable, and provide a secure connection to ensure fluid transfer without leaks or spills. Among different types of camlock fittings, plastic camlock coupling fittings and adapters stand out due to their versatility, affordability, and performance of corrosion resistance.

Our factory produces plastic camlock coupling fittings and adapters that cater to diverse industrial needs. We use high-quality materials, such as polypropylene, nylon, and PVDF, to ensure our products can withstand harsh conditions and corrosive environments. Moreover, our plastic camlock fittings come with precision-machined components, including stainless steel rings, cam arms, and pins, to ensure a tight seal and easy operation.

Type A, B, C, D , E, F, DP, DC with rubber sealing gasket.Please refer to the below drawing for each type.
(Note: Please allow a little dimension discrepancy due to manual measurement).

They are generally complete sets of products, and can also be purchased individually as needed.
Type A: One side is the joint stuck in the female head, and the other side is the hose mouth connected by the internal thread.；

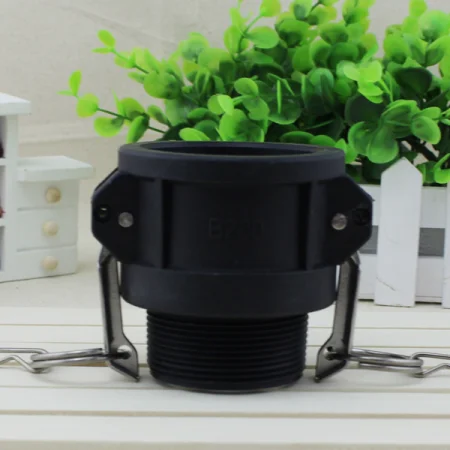

Type B: One side is a groove with two male heads of the pull-up card, and the other side is a hose mouth connected by an external thread.；
Type C: On one side is a groove with two male heads of the pull-up card, and on the other side is a hose joint with a slub shape.；

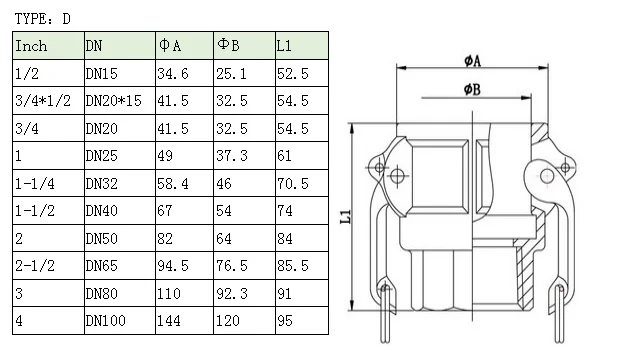

Type D: On one side is a groove with two male heads of the pull-up card, and on the other side is a hose mouth with internal thread connection.；

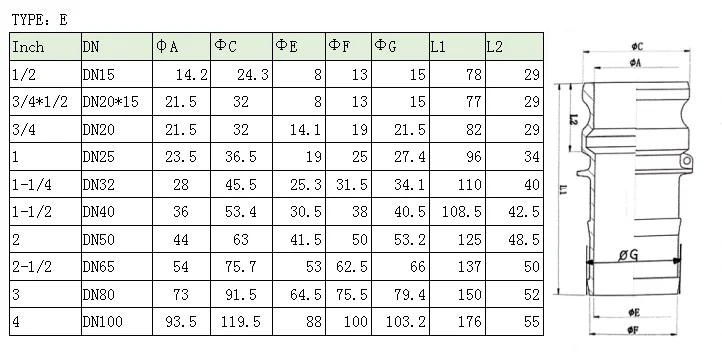

Type E: One side is a joint stuck in the female head, and the other side is a hose joint with a slub shape.；
Type F: One side is the joint stuck in the female head, and the other side is the house mouth with an external thread connection’
DC type: It is a round plug with two pull ears that can be stuck into the male head；

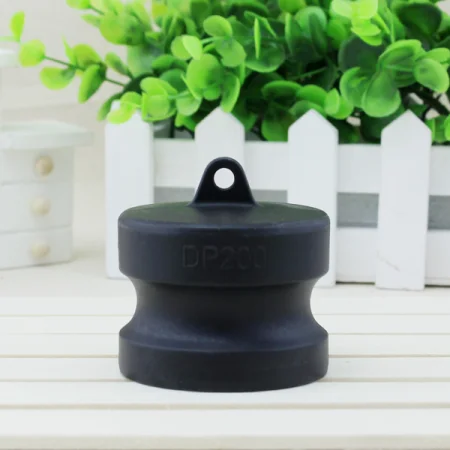

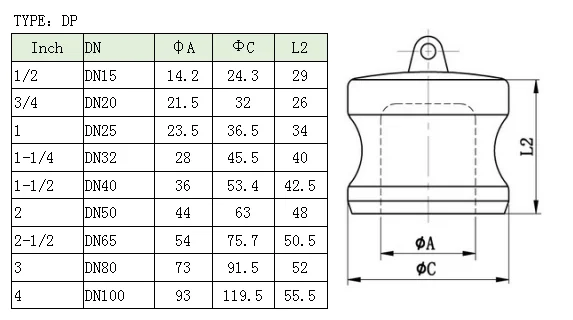

DP type: It is a round plug, also known as a quick-install plug.

Nylon coupling shares same drawings as that is made from Polypropylene. The difference of both is material.

• The plastic camlock coupling is available for retail and wholesale;
• The place of origin is in China,when you buy one or two,please consider freight(by air or by sea) into the cost;
• Accept bulk order with Container delivery;
• Please contact us online (click here) Or send inquiry message to our email:  sale@smartclima.com

Our plastic camlock coupling fittings and adapters are suitable for a wide range of industrial applications, including:

• Chemical processing
• Petroleum handling
• Food and beverage production
• Water treatment
• Pharmaceutical manufacturing
• Agriculture and irrigation
• Construction and mining

Plastic camlock fittings are ideal for handling liquids, powders, and granules that require frequent connection and disconnection. They are also compatible with various hoses and pipes, such as PVC, rubber, and stainless steel. Plastic camlock fittings are lightweight, easy to install, and resistant to corrosion, which makes them a cost-effective alternative to metal fittings.

Here are some reasons why you should consider buying plastic camlock coupling fittings and adapters from our factory:

• Wide Range of Products: We offer a wide selection of plastic camlock fittings, including Type A, B, C, D, E, F, DC, and DP. Each type comes in different sizes, from 1/2″ to 6″, to match the hose or pipe diameter. Moreover, we produce custom-made fittings upon request to meet specific requirements.
• Strict Quality Control: We have a rigorous quality control system that ensures each product meets the highest standards. Our experienced engineers inspect every component of the fitting, including the threads, gaskets, and body, before assembly. We also test each product using hydraulic pressure to verify its performance.
• Competitive Prices: Our factory offers competitive prices that suit any budget without compromising quality. We strive to provide cost-effective solutions for our clients while maintaining the same level of excellence in our products and services.
• Fast Delivery: We have a large inventory of plastic camlock fittings in stock, ready to ship at a moment’s notice. We work with reliable shipping partners to ensure timely delivery to any location worldwide.
• Excellent Customer Service: Our team of experts is always available to assist you in choosing the right plastic camlock fitting for your application. We provide technical support, product customization, and after-sales service to ensure customer satisfaction.
