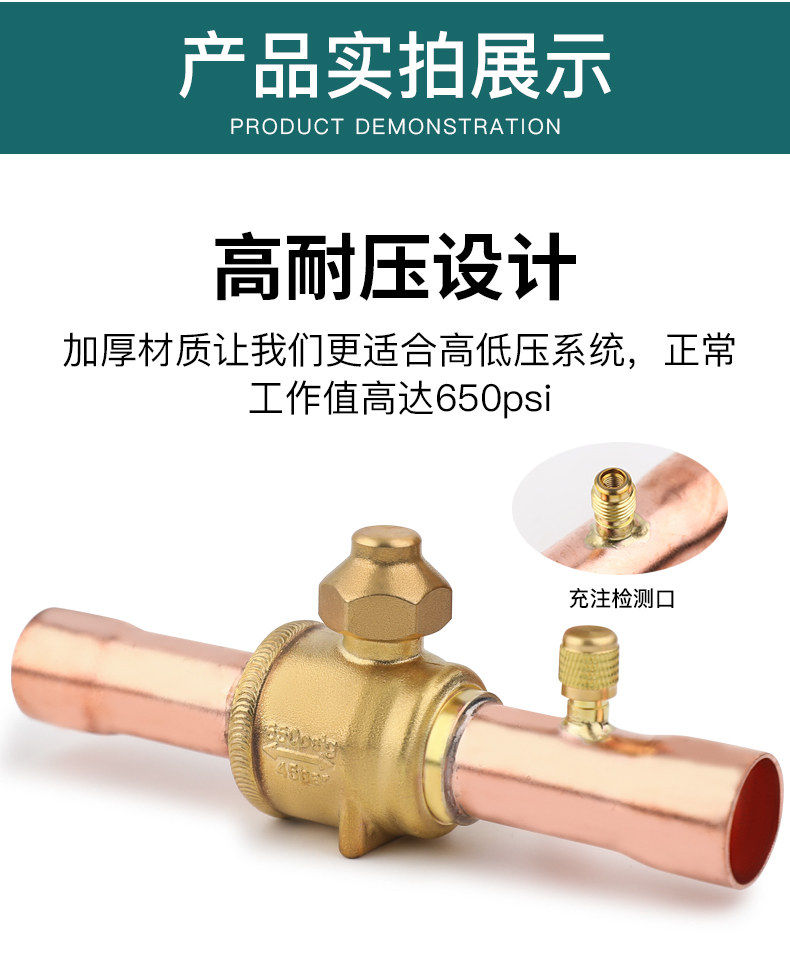

GBC Refrigerant Ball Valves HongSen Size 1/4″,3/8″,5/8 to 2-1/8″

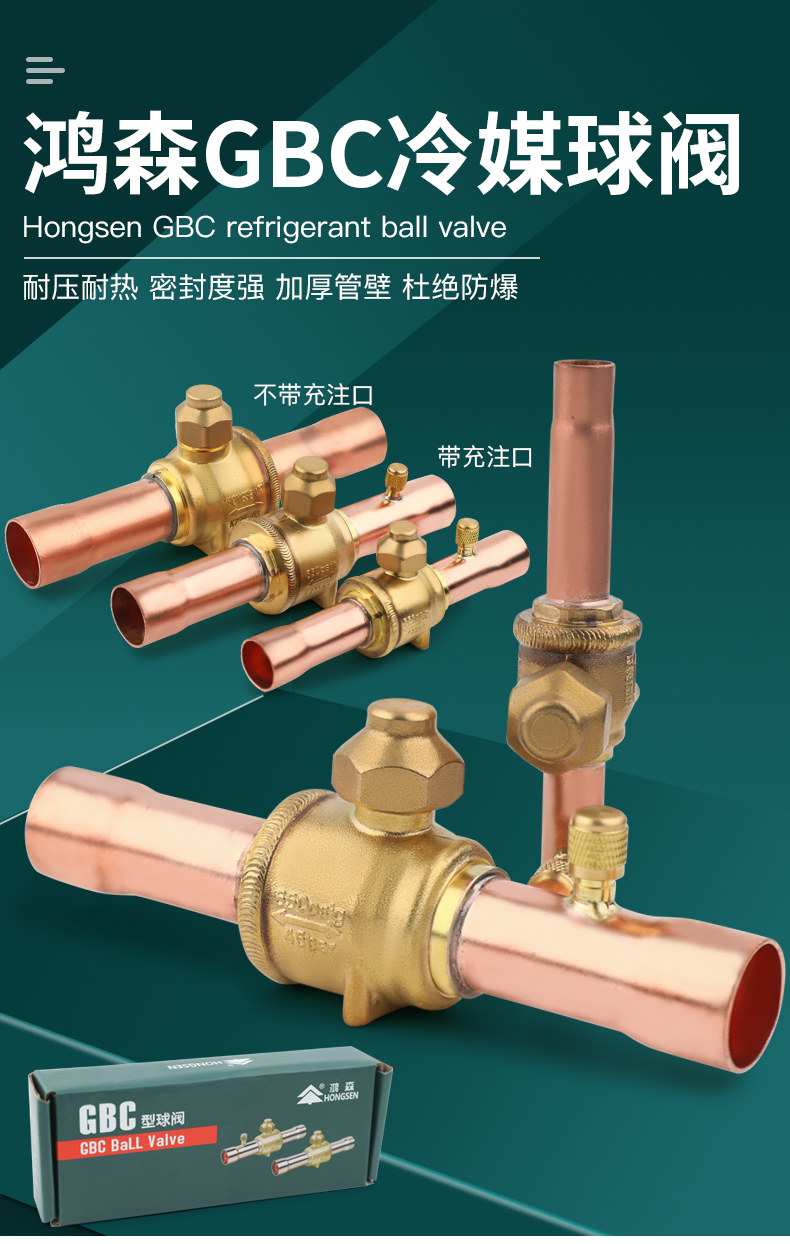

GBC type refrigerant ball valve includes two valve types: one with filling detection port and the other without filling detection port
Product Description
GBC type ball valve is a manually adjusted globe valve, suitable for two-way flow;
GBC type ball valve on the liquid, suction and hot air pipelines of refrigeration, refrigeration and air conditioning devices;
The seat and seal of the GBC type ball valve have good sealing properties;
The GBC type ball valve is a straight-through type, which can provide the maximum flow rate, and the valve has a wide operating temperature range.;
The GBC type ball valve is equipped with a sealing cap with a secondary seal, which can be locked with a metal wire to prevent the removal and loss of the sealing cap, as well as misoperation during maintenance;

Product Features
Flow without pressure drop;

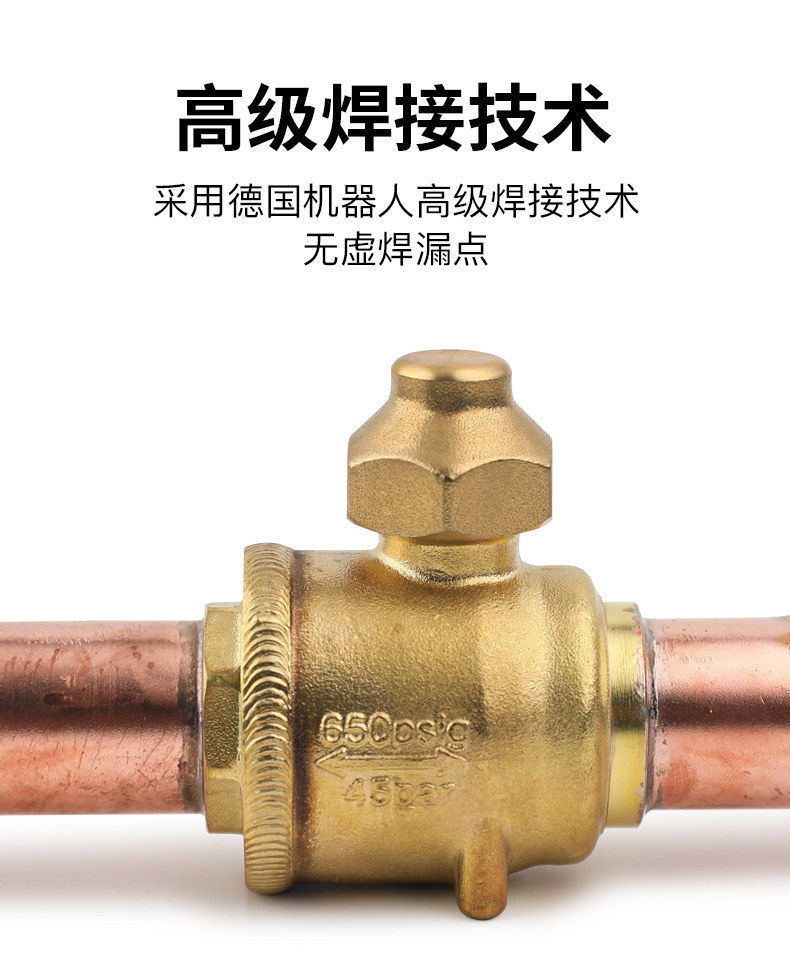

Oxygen arc welding structure;
Only need to turn 1/4 circle from fully open to fully closed;
Explosion-proof valve stem design;
Both fully open and fully closed are limited by rotation;
Modified PTFE seal;
The top mark of the stem is the full opening and full closing of the valve;

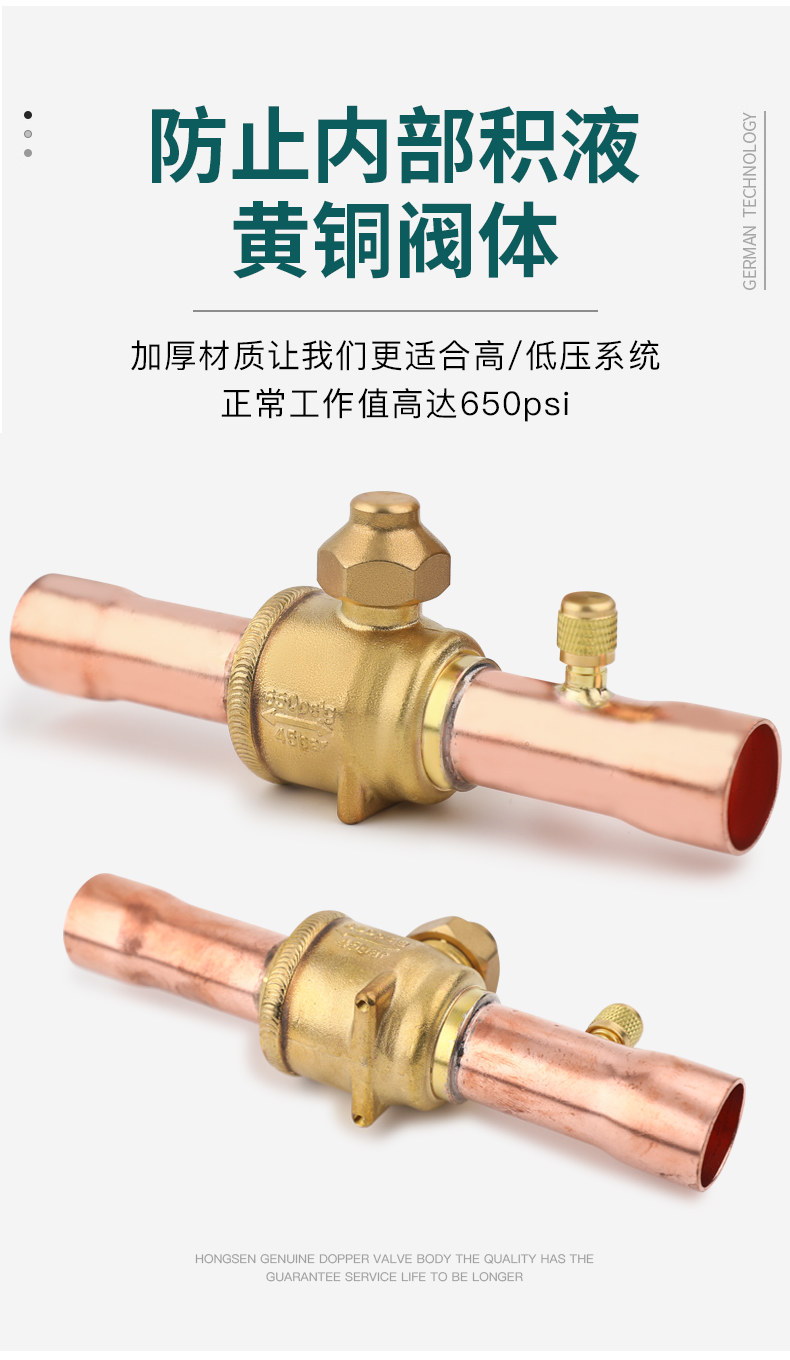

Prevents internal effusion;
Two-way liquidity;
Can be installed on the control board;

Performance:

Applicable refrigerants: HCFCS/HFC, R410, R22, R134,etc.

Suitable medium temperature:-40 °C ~ 150 °C

Working Pressure: 4.5MPa

Pressure Resistance: 6.5MPa

Annual refrigerant leakage: <2g R22a
