Models and Details for “Danfoss pressure switch KP35 KP36 KP1 KP2 KP5 pressure controller ”
Brand: danfoss
Model: KP1
Color classification: KP1, KP2, KP35, KP36, KP5, KP15
Decoration and construction content: installation engineering
KP35 -0.2-7.5bar G1/4
KP36 2-14bar G1/4
Product parameters: 1. KP35, product code: 060-1133, 060-5047: adjustment range -0.2-7.5 (bar) mechanical backlash 0.7-4 (bar) maximum working pressure 17 (bar) maximum test pressure 22 (bar) Pressure connection: G1/4A Contact material: Ag, common code: 060-1133
2. KP36, product code: 060-1108, 060-1137, 060-1221, 060-1144: adjustment range 2-14 (bar) mechanical backlash 0.7-4 (bar) maximum working pressure 17 (bar) maximum test pressure 22 (bar0 pressure connection: G1/4A Contact material: Ag, common code: 060-1108

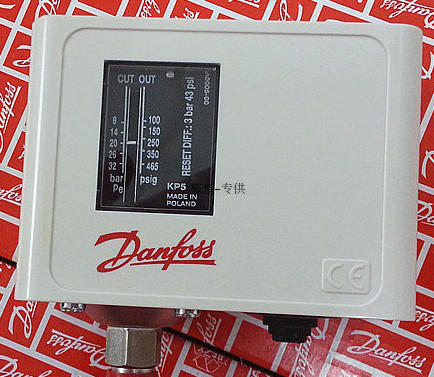

3. KP5: adjustment range 8-32 (bar) mechanical hysteresis 1.8-6 (bar) maximum working pressure 42 (bar) maximum test pressure 47 (bar) Pressure connection: 1/4 bell mouth, contact material: Ag, Commonly used code 060-1171
4. KP2: adjustment range -0.2～5 (bar) mechanical hysteresis 0.4-1.5 (bar) maximum working pressure 17 (bar) maximum test pressure 20 (bar) Pressure connection: 1/4 bell mouth, contact material: Ag, Commonly used code 060-1120
5. KP1: adjustment range -0.2～7.5 (bar) mechanical backlash 0.7-4 (bar) maximum working pressure 17 (bar) maximum test pressure 20 (bar) Pressure connection: 1/4 bell mouth, contact material: Ag, Commonly used code 060-1101
