A42Y Flanged type Spring loaded safety valve

A42Y-C type are used for the equipment and pipeline of the air, petroleum gas, liquid etc medium what the working temperature are less than 300℃.A42Y P type and A42Y R type are used for the equipment and pipeline of the quality with corrode medium what the working temperature are less than 200℃. Take for extra pressure protection devices.Flange connecting dimensions of comply with Standard series firstof JB/T……94. Comply with Standard series twice of J8/T…….94 when more than 6.4MPa.

Code:A42Y-16C,A42Y-16P,A42Y-16R,A42Y-16;KA42Y-16,DA42Y-16C(P),A42Y-25,A42Y-25P,A42Y-25R,KA42Y-25(P),DA42Y-25(P),A42Y-40,A42Y-40P,A42Y-40R,KA42Y-40,DA42Y-40(P) … …(See below).

Size/Dimension:DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN125,DN150,DN200.

Place of origin: China , Sell to worldwide.

 Order Or Inquiry On “A42Y Flanged type Spring loaded safety valve”

Due to the special nature of the safety valve, after receiving the product, the user needs to get the inspection by the pot inspection. It can be used only after the parameters are qualified. The setting pressure must be set and debugged before leaving our factory according to the user`s actual requirements.Therefore, please be sure to inform us for these pressure parameters requirement after you order, otherwise it will not be shipped.

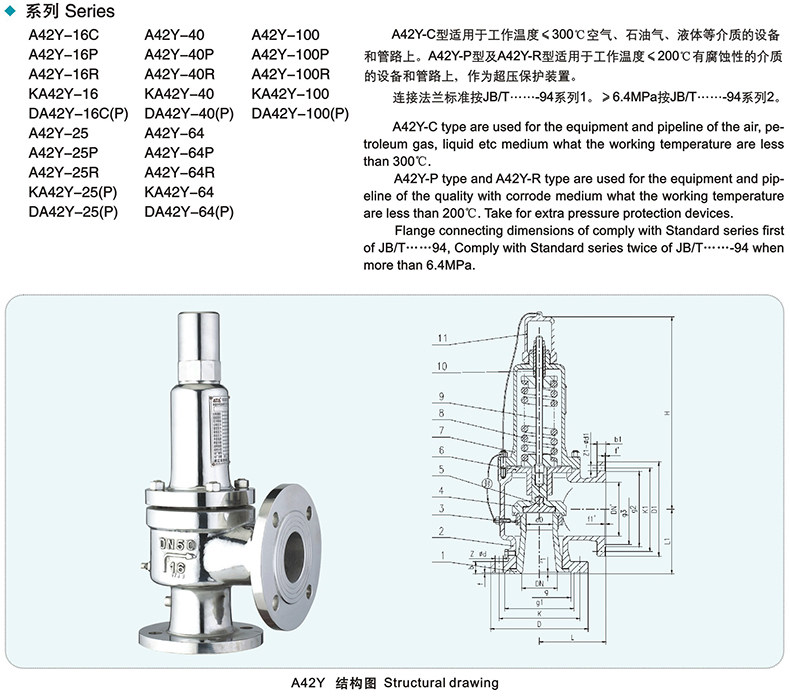

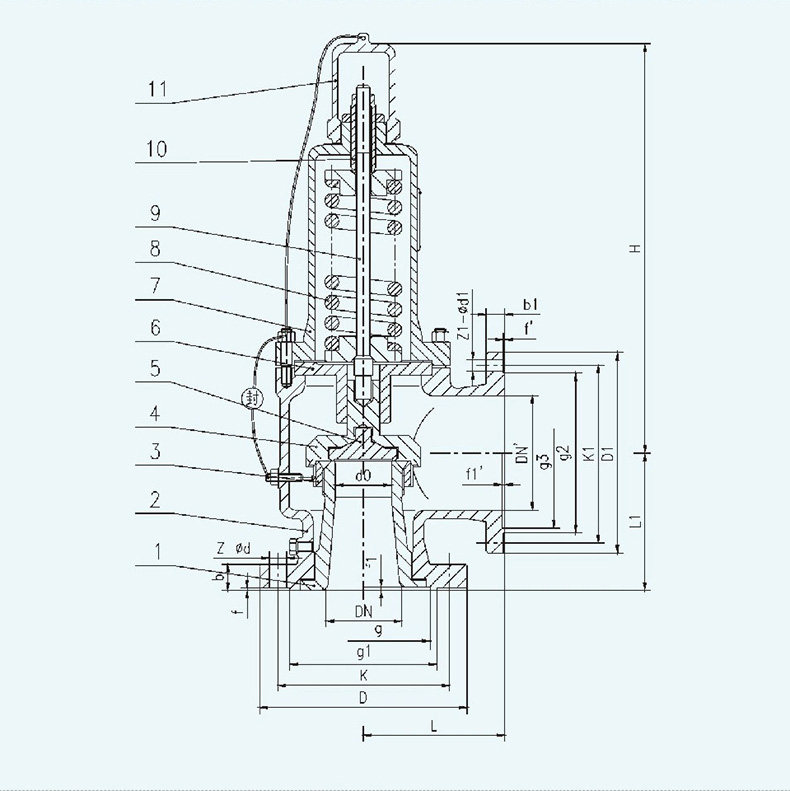

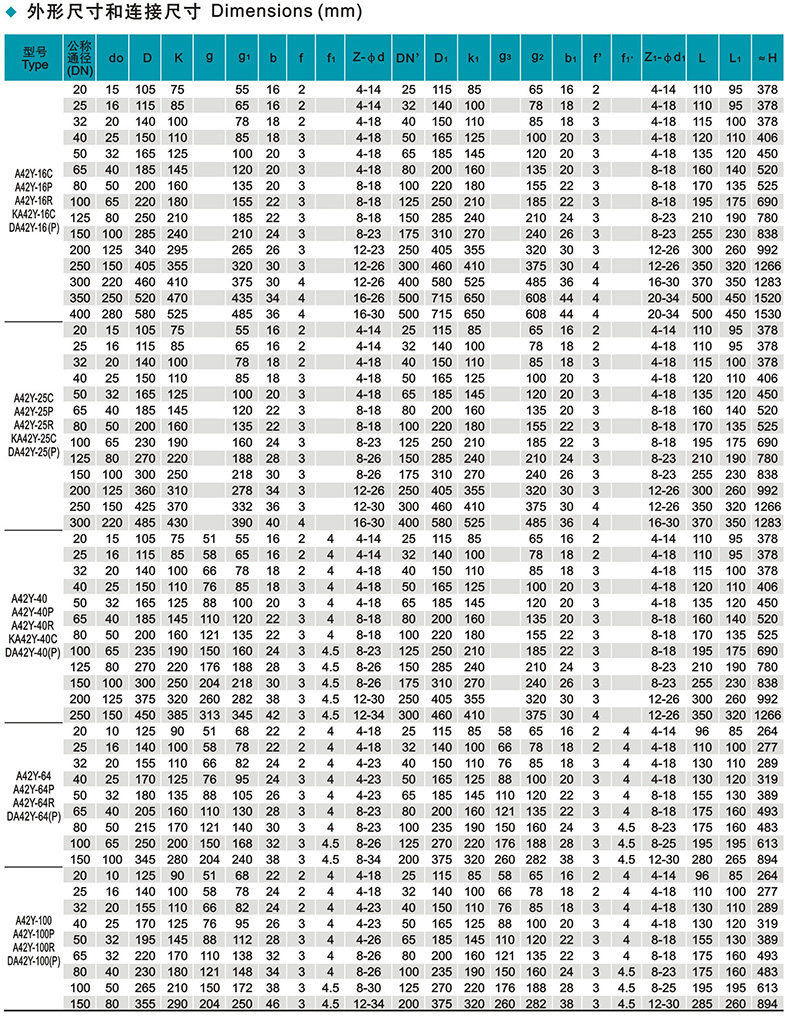

A42Y Flanged type Spring loaded safety valveA42Y Flanged type Spring loaded safety valve 2A42Y Flanged type Spring loaded safety valve 4A42Y Flanged type Spring loaded safety valve 6A42Y Flanged type Spring loaded safety valve designA42Y Flanged type Spring loaded safety valve 8A42Y Flanged type Spring loaded safety valve dimensionA42Y Flanged type Spring loaded safety valve 10the conditioning pressure class of safety valve and performance standards

 How to purchase “A42Y Flanged type Spring loaded safety valve”

  • The item  is available for retail and wholesale;
  • The place of origin is in China,when you buy one or two,please consider freight(by air or by sea) into the cost;
  • Accept bulk order with Container delivery;
  • Please contact us online (click here) Or send inquiry message to our email:  sale@smartclima.com
