A28H-16C Screw-in type with handle spring loaded full-open safety valve

A28H-16C Screw-in type with handle spring loaded full-open safety valve 1

Item:A28H-16C Screw-in type with handle spring loaded full-open safety valve

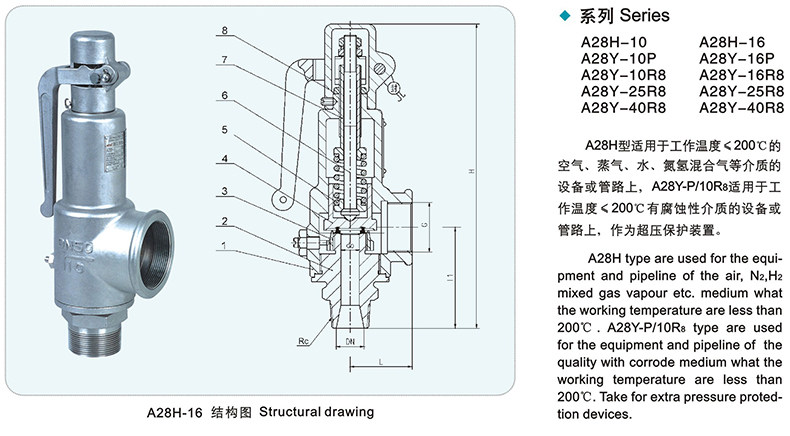

Short Description:A28H type are used for the equipment and pipeline of the air, N2,H2 mixed gas vapour etc. medium what the working temperature are less than 200℃. A28Y-P/10R8 type are used for the equipment and pipeline of the quality with corrode medium what the working temperature are less than 200℃. Take for extra pressure protedtion devices.

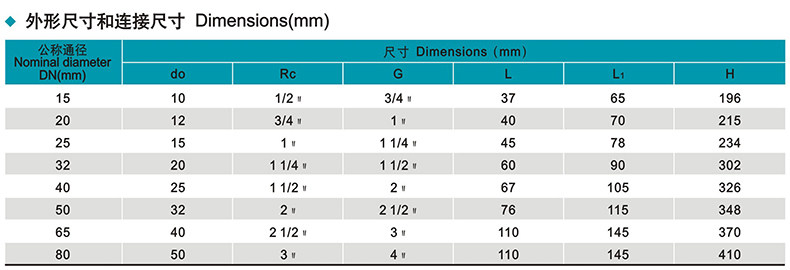

Size/Dimension:DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80.

Place of origin: China , Sell to worldwide.

Order or Inquiry on “A28H-16C Screw-in type with handle spring loaded full-open safety valve ”
Models and details of  “A28H-16C Screw-in type with handle spring loaded full-open safety valve ”

Due to the special nature of the safety valve, after receiving the product, the user needs to get the inspection by the pot inspection. It can be used only after the parameters are qualified. The setting pressure must be set and debugged before leaving our factory according to the user`s actual requirements.Therefore, please be sure to inform us for these pressure parameters requirement after you order, otherwise it will not be shipped.

A28H-16C Screw-in type with handle spring loaded full-open safety valve 2A28H-16C Screw-in type with handle spring loaded full-open safety valve 3A28H-16C Screw-in type with handle spring loaded full-open safety valve 4A28H-16C Screw-in type with handle spring loaded full-open safety valve 5A28H-16C Screw-in type with handle spring loaded full-open safety valve 6A28H-16C Screw-in type with handle spring loaded full-open safety valve 7A28H-16C Screw-in type with handle spring loaded full-open safety valve 8A28H-16C Screw-in type with handle spring loaded full-open safety valve 9A28H-16C Screw-in type with handle spring loaded full-open safety valve 10A28H-16C Screw-in type with handle spring loaded full-open safety valve 11A28H-16C Screw-in type with handle spring loaded full-open safety valve 12A28H-16C Screw-in type with handle spring loaded full-open safety valve 13A28H-16C Screw-in type with handle spring loaded full-open safety valve 14

Buying guide to “A28H-16C Screw-in type with handle spring loaded full-open safety valve ”
  • The item  is available for retail and wholesale;
  • The item is very heavy,usually,we suggest delivery by sea only for large DN.The place of origin is in China,when you buy one or two,please consider freight(by air or by sea) into the cost;
  • Accept bulk order with Container delivery;
  • Please contact us to email: [email protected]
