Titanium Coil immersion type heat exchanger

HVAC Parts >>Refrigerating Parts & Heating Elements>>Heat Exchangers>>Titanium Coil  immersion type heat exchanger

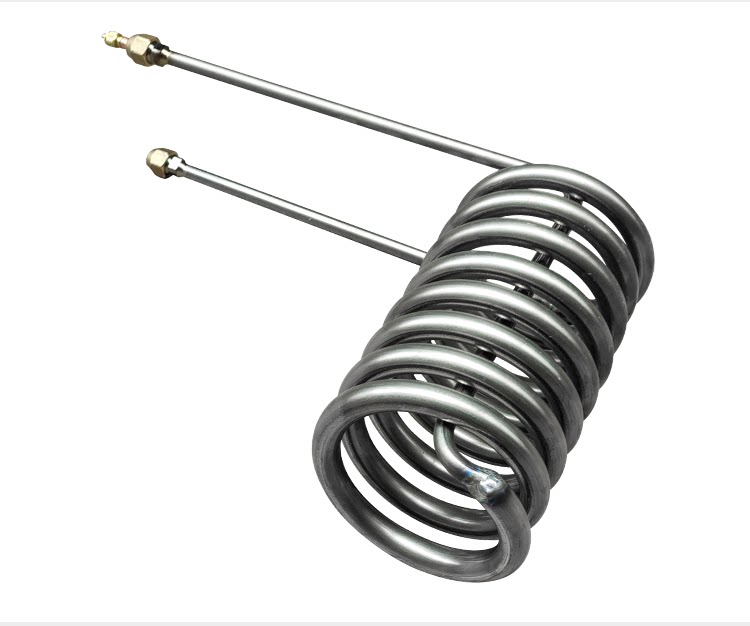

Titanium Coil  immersion type heat exchanger

Item: Titanium Coil  immersion type heat exchanger

Short Description: High quality titanium tube coil heat exchanger immersion type,flowing refrigerant.It has performance of corrosion resistant,generally used for seafood, freshwater and seawater cooling & heating (which can be included in the titanium evaporator titanium electric heating rods). Titanium evaporator specifications lists from 1/2HP to 60HP.

Materials:coil is made from titanium,brass fittings.

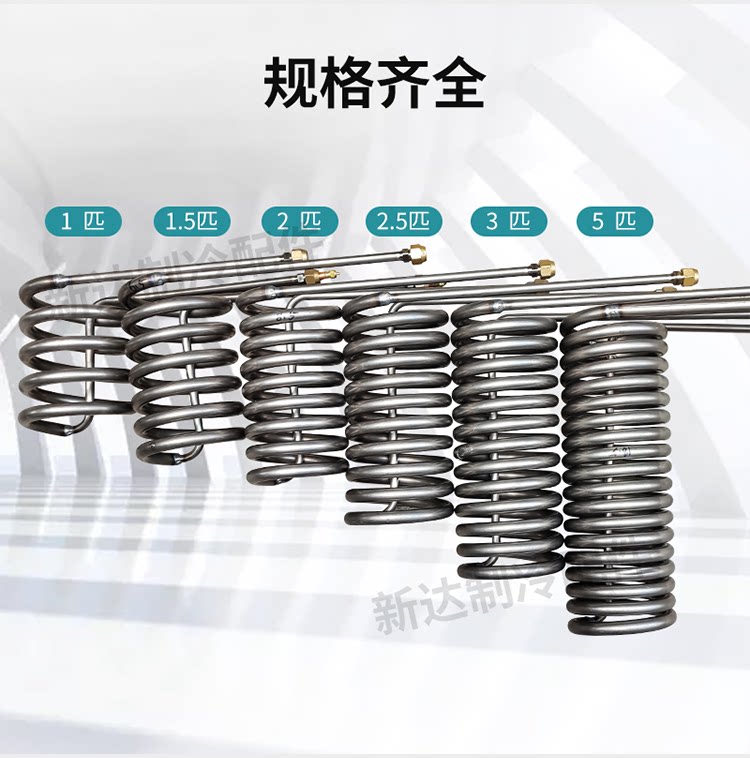

Size/Dimension:1HP,1.5HP,2HP,3HP,4HP,5HP, … …
9000BTU,120BTU,15000BTU,18000BTU,… …

Place of origin: China , Sell to worldwide.

Order or Inquiry on “Titanium Coil  immersion type heat exchanger
Models & Details for “Titanium Coil  immersion type heat exchanger”

Product advantages:
1. Industrial seamless titanium tube (TA1) production;

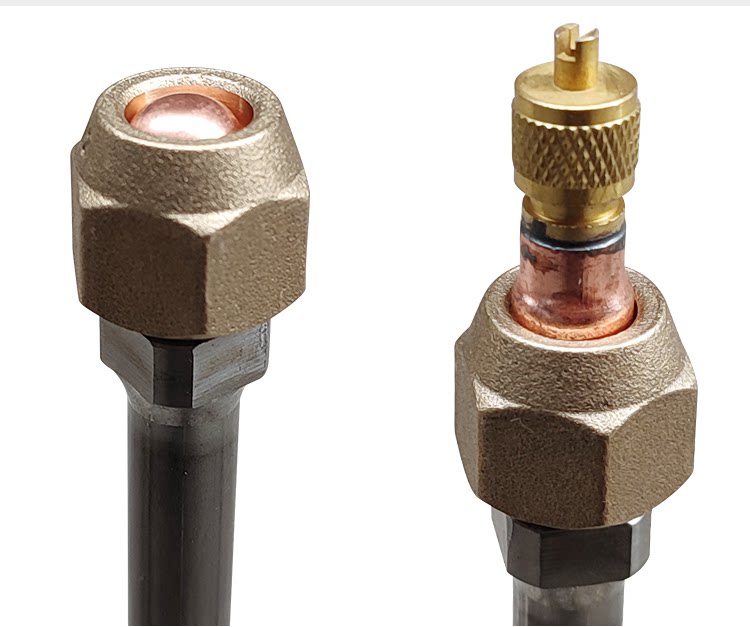

2. No copper nut connection, safe and reliable use direct immersion;
3. Intuitive inside and outside of the entire product;
4. easy to clean;
5. Can be customized.

1. The titanium tube heat exchanger made of high quality industrial titanium Seiko production, up 99.8% purity titanium, corrosion resistance, high conductivity, heat resistance, suitable for low concentration, acidic liquid processing and cooling; surface is not easy oxidation layer, do not pollute the media, environmental protection, non-toxic, non-fouling, clogging.
2. The product through professional welding process, welding interfaces are tight and difficult to leak.
3. Subtract the conventional manufacturing processes. The link with the new method to achieve security combined with titanium and copper. No leakage, safe and reliable.
4. Simple structure titanium tube heat exchanger, high pressure, using immersive structure, to be installed in the heat of the container can be made based on single or multi-layer container.

The products are widely used in various types of seafood farming, water heat exchanger, brine heat exchangers, chemical, food, pharmaceutical, metallurgy, refrigeration, light industry, electroplating industry, alumina trough, salt, paper, ultrasonic, electronic communications, centralized supply heat and other industries and fields.

Titanium Coil  immersion type heat exchanger

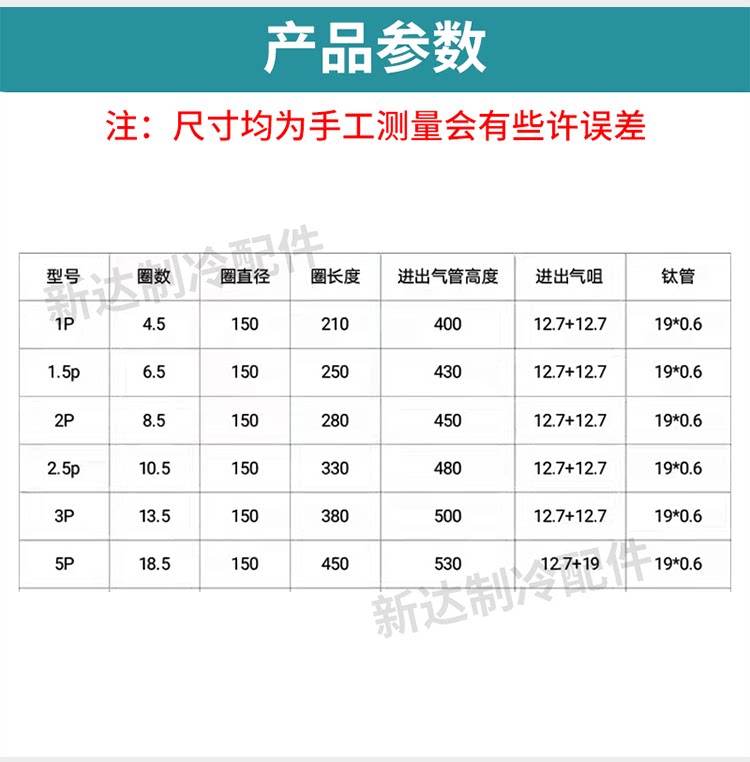

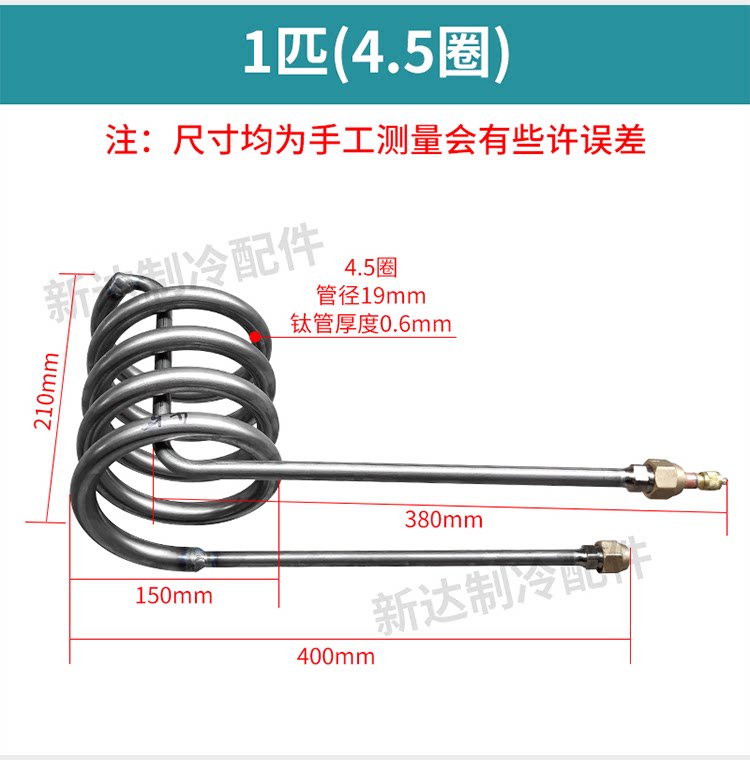

Model Spec. Size Refrigerant in Refrigerant out

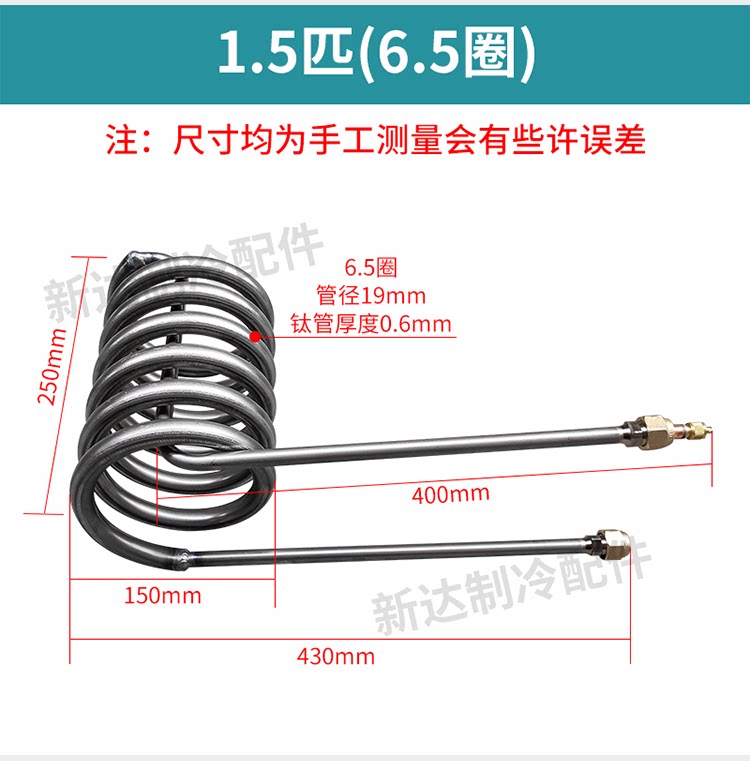

Φ150mm 6.5coils Titanium Tube Φ19.05 Φ12.7 Φ12.7
Φ16.0 Φ12.7 Φ12.7

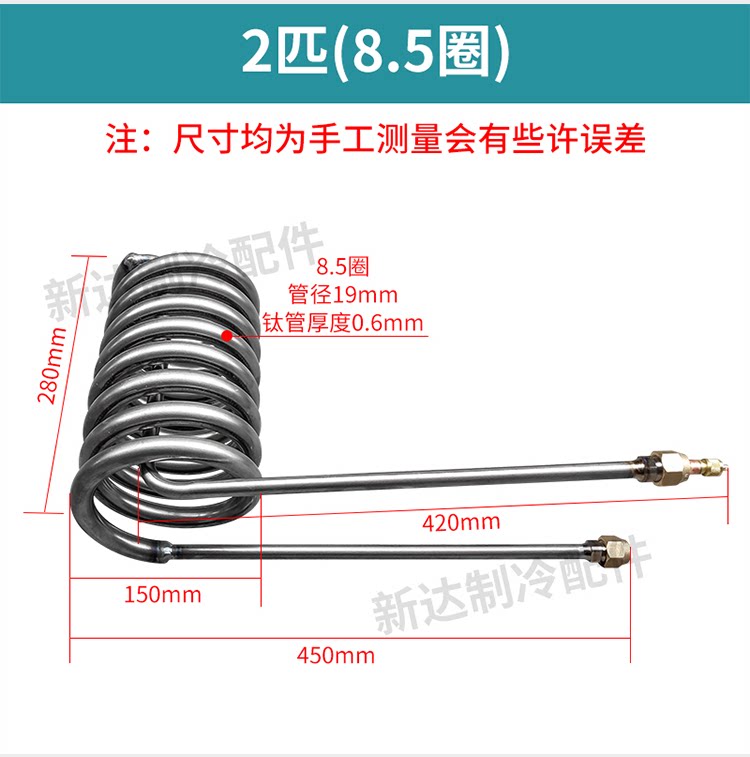

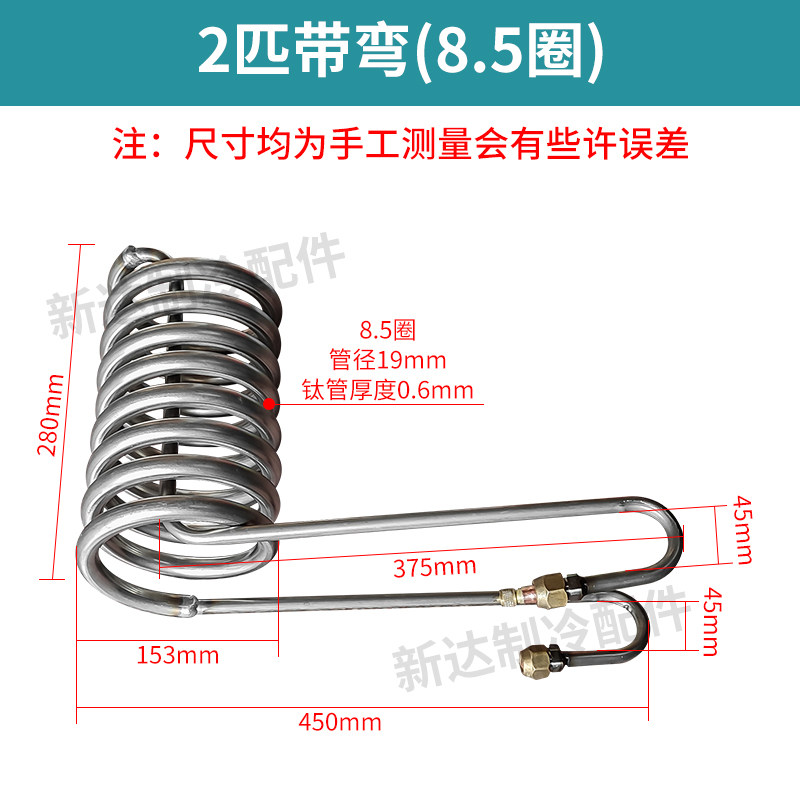

Φ150mm 8.5coils Titanium Tube Φ19.05 Φ12.7 Φ12.7
Φ16.0 Φ12.7 Φ12.7

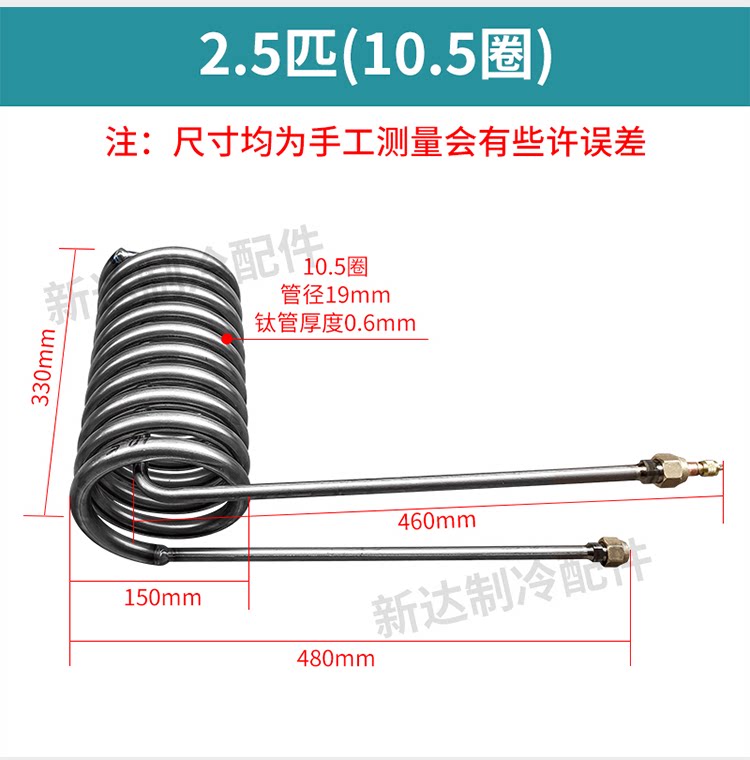

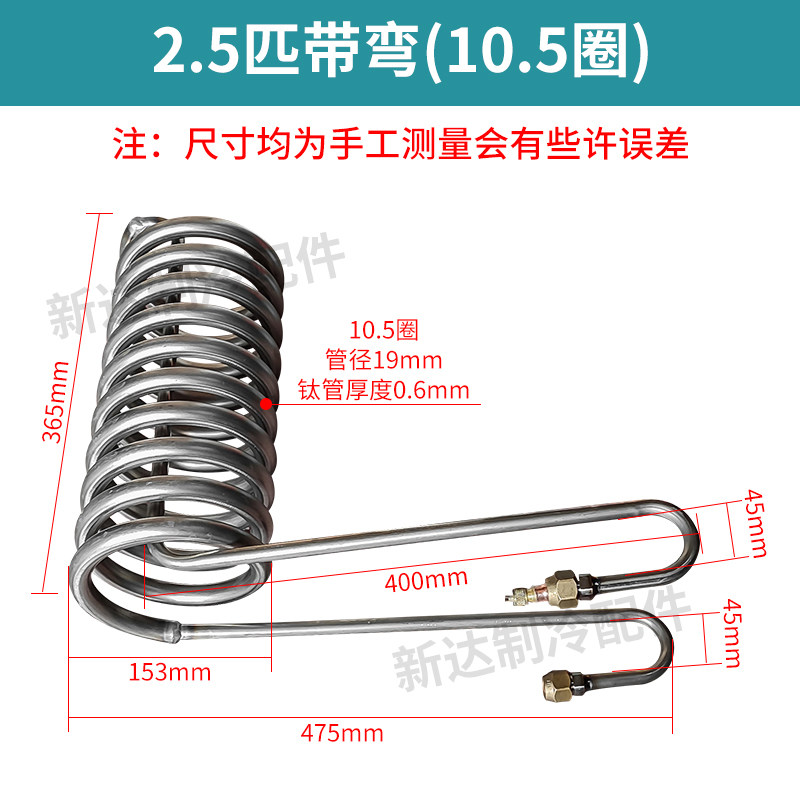

Φ150mm 10.5coils Titanium Tube Φ19.05 Φ12.7 Φ12.7
Φ16.0 Φ12.7 Φ12.7

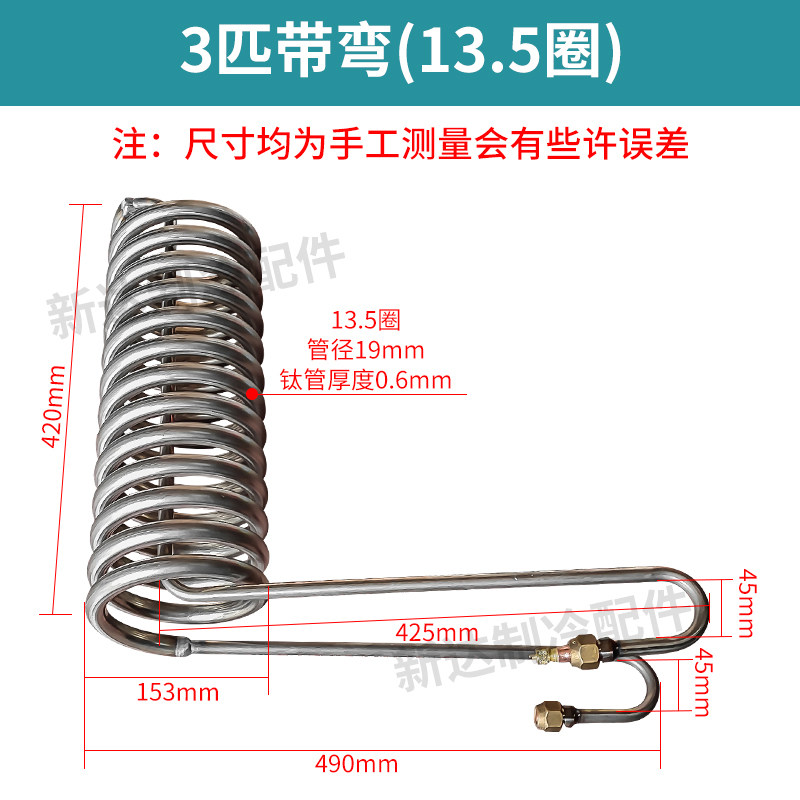

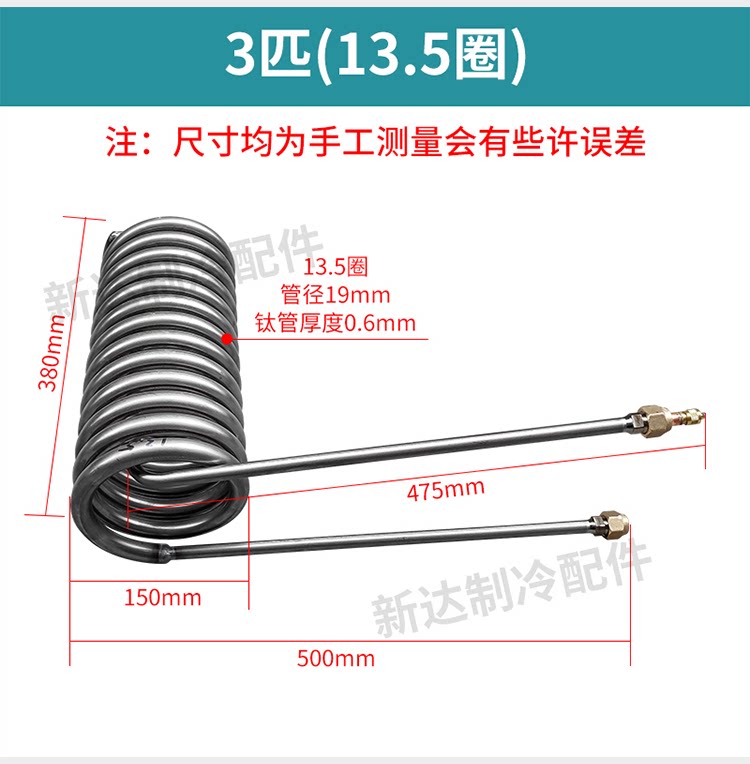

Φ150mm 13.5coils Titanium Tube Φ19.05 Φ12.7 Φ19.05
Φ16.0 Φ12.7 Φ16.0

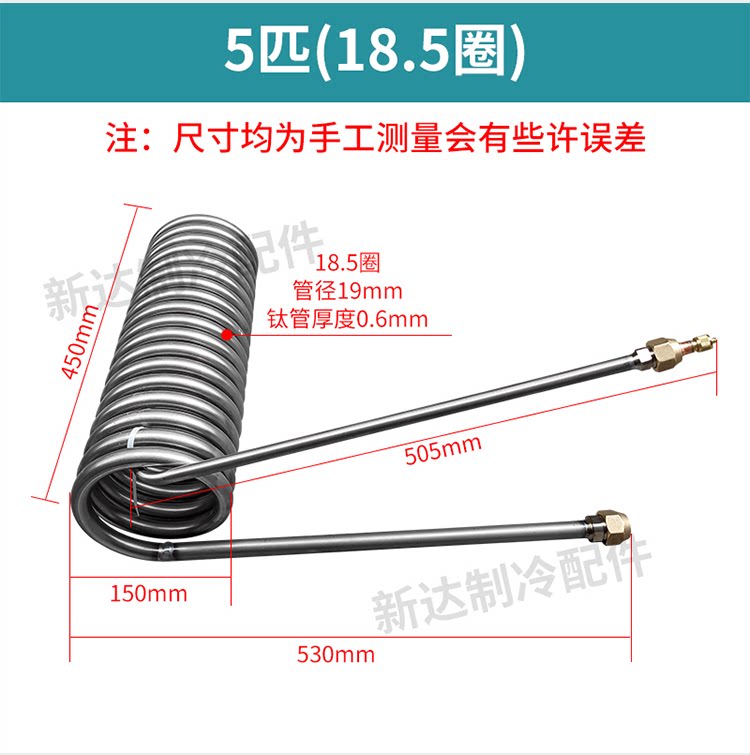

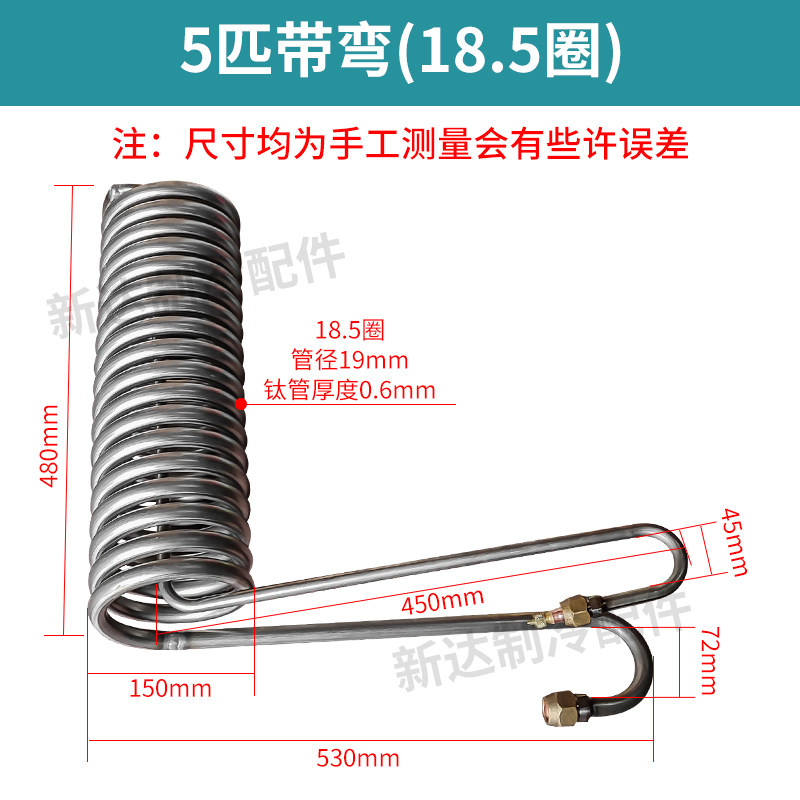

Φ150mm 18.5coils Titanium Tube Φ19.05 Φ12.7 Φ19.05
Φ16.0 Φ12.7 Φ16.0

… …More.

Buying guide to “Titanium Coil  immersion type heat exchanger ”
  • The item  is available for retail and wholesale;
  • The item takes large packing dimension,therefore,takes much volume weight.The place of origin is in China,when you buy one or two,please consider freight(by air or by sea) into the cost;
  • Accept bulk order with Container delivery;
  • Please contact us to email: hvac@smartclima.com
General Knowledge on “Titanium tube”

Titanium-tubeTitanium tube is light weight, high strength, excellent mechanical properties. It is widely used in heat exchange equipment, such as a tube heat exchangers, plate heat exchanger tube, snake tube heat exchangers, condensers, evaporators and transportation pipelines.
Titanium is a new type of metal, and the performance of the carbon-containing titanium impurity content of nitrogen, hydrogen, oxygen and so on, the most pure titanium iodide impurities is not more than 0.1%, but its low strength, high ductility. 99.5% for the performance of industrial pure titanium: density ρ = 4.5g / cm3, a melting point of 1725 ℃, thermal conductivity λ = 15.24W / (mK), tensile strength σb = 539MPa, elongation δ = 25%, necking rate ψ = 25%, the elastic modulus E = 1.078 × 105MPa, the hardness HB195. Detailed performance titanium tube as follows:
(1) high specific strength
The density of titanium is generally about 4.5g / cm3, only 60% of steel, titanium’s strength was close to the strength of ordinary steel, some high-strength titanium alloy structural strength than a lot of steel. Therefore, the ratio of titanium alloy strength (strength / density) is much larger than other metallic structural materials, see Table 7-1, can be made out of high unit strength, rigidity, lightweight parts and components. Currently aircraft engine components, skeleton, skin, so the use of titanium fasteners and landing gear.
(2) high thermal strength
Temperature hundreds of degrees higher than aluminum, at moderate temperatures can still maintain the desired strength, long-term work at a temperature of 450 ~ 500 ℃ of these two types of titanium in the range of 150 ℃ ~ 500 ℃ still very high strength, and aluminum at 150 ℃ decreased significantly when compared strength. Titanium’s operating temperature up to 500 ℃, aluminum is below 200 ℃.
(3) corrosion resistance
Titanium work in humid atmosphere and seawater, which is far superior corrosion resistance of stainless steel; for pitting, etching, stress corrosion resistance is particularly strong; alkali, chloride, chlorine organic materials, nitric acid, sulfuric acid and so it has excellent corrosion resistance. However, the corrosion resistance of titanium with a reduction of oxygen and chromium salts medium is poor. Commonly used in seafood brackish water cooling, heating heat exchanger (which can be included on titanium electric heating rods in titanium evaporator).
(4) good low temperature performance
Titanium alloys at low and ultra-low temperature, retain their mechanical properties. Low temperature performance, low interstitial elements of titanium, such as TA7, at -253 ℃ can maintain a certain degree of plasticity. Thus, titanium is also an important low temperature structural materials.
(5) The chemical activity of large
Chemical activity of titanium is large, a strong chemical reaction with atmospheric O, N, H, CO, CO2, water vapor, ammonia and the like. Carbon content greater than 0.2%, it will form a hard TiC in titanium alloys; the temperature is high, and the role of N will form TiN hard surface; above 600 ℃, high hardness of hardened layer of titanium absorbs oxygen is formed ; hydrogen content increased, brittle layer will form. Absorbing gas generated brittle surface layer depth of up to 0.1 ~ 0.15 mm, the degree of hardening of 20% to 30%. Titanium is also large chemical affinity, easy and sticking friction surface.
(6) thermal conductivity, small elastic modulus
Thermal conductivity of titanium λ = 15.24W / (mK) approximately 1/4 of nickel, iron 1/5, 1/14 of aluminum, while the thermal conductivity of various titanium decreased by 50% than the thermal conductivity of titanium. The elastic modulus of about 1/2 of titanium alloy steel, so the poor rigidity, deformation, not making slender rod and thin-walled parts, cutting the amount of the machined surface rebound large, about 2 to 3 stainless steel times, causing intense friction of tool flank, adhesion, adhesive wear.
