FA48Y FA48SB Flanged type Spring loaded safety valve

FA48Y FA48SB Flanged type Spring loaded safety valve

Item:FA48Y FA48SB Flanged type Spring loaded safety valve

Short Description: These safety valve are used for the equipment and pipeline of the steam. etc.Medium what the working temperature with C Typeless than 425℃ and I type are less than 500℃ and V Type are less than 550℃. Take for extra pressure protection devices. Flange cc ecting dimensions of comply with Standard series first and second of JB/T79-94.

Code:SFA48Y-16C,SFA48Y-161,SFA48Y-16V,SFA48Y-40,SFA48Y-401,SFA48Y-40V,SFA48SH-4C,SFA48Y-64,SFA48Y-641,SFA48Y-64V,SFA48sB-64,SFA48sB-64,SFA48sB-64,SFA48Y-100,SFA48Y-1001,SFA48Y-100V,SFA48sB-100,SFA48sB-1001,SFA48sB-100V,SFA48TH-100,SFA48Y-160,SFA48sB-160,SFA48sB-1601,SFA48sB-160V

Size/Dimension:DN40,DN50,DN65,DN80,DN100,DN150/DN200,DN200,DN250/DN300,DN300

Place of origin: China , Sell to worldwide.

Order or Inquiry on “FA48Y FA48SB Flanged type Spring loaded safety valve”
Models and details of  “FA48Y FA48SB Flanged type Spring loaded safety valve”

Due to the special nature of the safety valve, after receiving the product, the user needs to get the inspection by the pot inspection. It can be used only after the parameters are qualified. The setting pressure must be set and debugged before leaving our factory according to the user`s actual requirements.Therefore, please be sure to inform us for these pressure parameters requirement after you order, otherwise it will not be shipped.

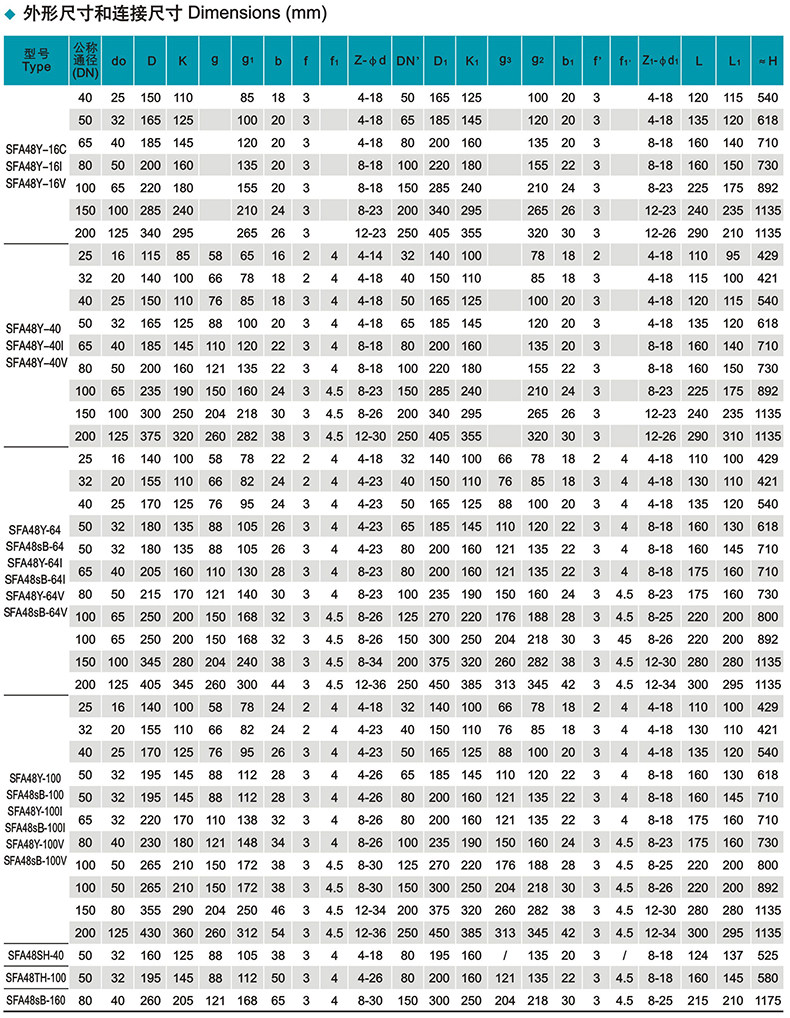

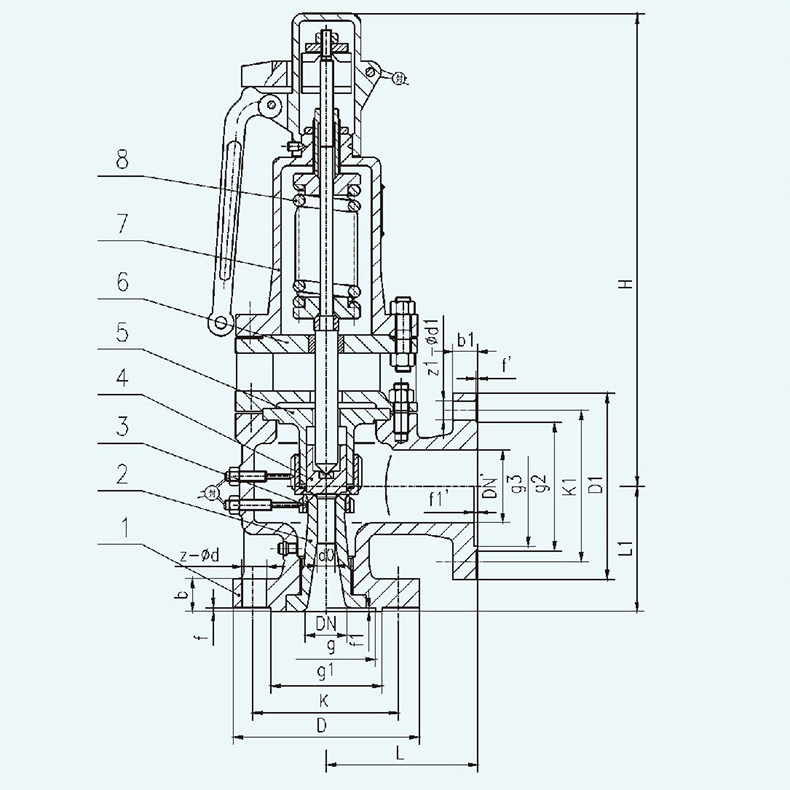

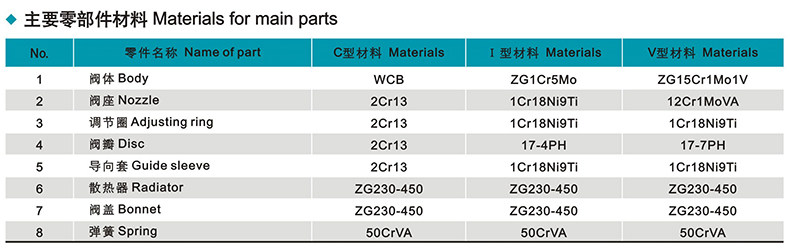

FA48Y FA48SB Flanged type Spring loaded safety valve partsFA48Y FA48SB Flanged type Spring loaded safety valve designFA48Y FA48SB Flanged type Spring loaded safety valve dimension

the conditioning pressure class of safety valve and performance standards

Buying guide to “FA48Y FA48SB Flanged type Spring loaded safety valve”
  • The item  is available for retail and wholesale;
  • The item is very heavy,usually,we suggest delivery by sea only for large DN.The place of origin is in China,when you buy one or two,please consider freight(by air or by sea) into the cost;
  • Accept bulk order with Container delivery;
  • Please contact us to email: sale@smartclima.com
