Delay On Make Timer Relay

HVAC Parts >>Air Conditioner Spare Parts>>AC Parts Assembling & Repairing>>Delay On Make Timer Relay

Delay-On-Make-Timer-Relay

Item: Delay On Make Timer Relay

Short Description:Also named  Delay On Break  Timer Relay,works for compressor, air conditioner,refrigeration system and HVAC system,to delay time for starting.

  • Line Voltage: 18-240 VAC/VDC
  • Line Frequency: 50/60 HZ
  • Output Ratings:Maximum: 1.5 amps;Minimum: 40 mA;Inrush: 15 amps
  • Time Delay: 0.03-10 mins. adjustable

Place of origin: China , Sell to worldwide.

Order or Inquiry on “Air Conditioner Anywhere Controller

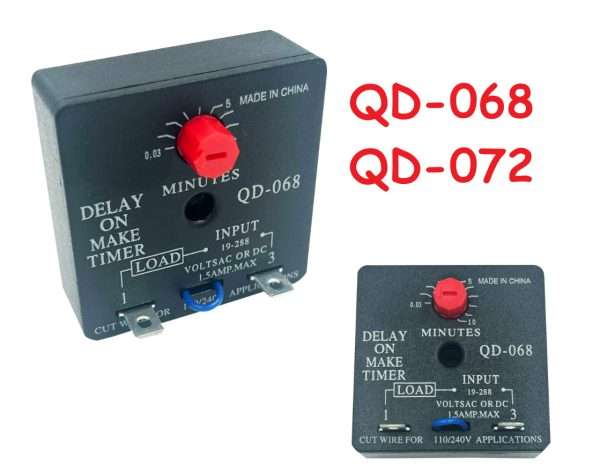

Model: QD-068

Replaces

Diversified:    AC-800             ASC-600,601
Gemline:       1C310,1C213

Mars:            32391,32367

Robertshaw:  3310-068

Supco:          TD-68,TD-69

ICM:             102

Watsco:        EAC-701-ADJ      EAC-700-A

Specifications

·Knob adjustable from .03-10 minutes

·Works with anticipator thermostats

Input
Line Voltage: 18-240 VAC/VDC
Line Frequency: 50/60 HZ
Output
Output Ratings:
Maximum: 1.5 amps
Minimum: 40 mA
Inrush: 15 amps
Time Delay: 0.03-10 mins. adjustable

Installation

1.Disconnect power.

2.Connect terminals in series with the starting device as shown in the system diagram below.

3.For 24 VAC circuits, apply control as packaged. For 120/240 VAC circuits, cut the jumper wire.

4.Select the desired time delay.

5.Reapply power, check operation.

6.Trickle current bypass resistor T1 to T3 < 1k ohm.

Mode of Operation

When power is applied to the input, the time delay begins. After the time delay is complete,the load energizes and remains energized as long as power is applied. The control is reset by removing power during or after the time delay period.

The QD-068 provides thermostat interruption protection, even in the presence of a trickle current.

Model: QD-072

Replaces

Diversified: ASC-500, ASC-501, ASC-502 ASC-503, ASC-505-5
Gemline: 1C320
Mars: 32392
Robertshaw: 3310-072
Supco: TD-73
ICM: 203
Watsco: EAC-501-ADJ EAC-501-ADJ-X

Specifications
·Knob adjustable from .03-10 minutes
·Works with anticipator thermostats
Input
Line Voltage: 18-240 VAC
Line Frequency: 50/60 HZ
Output
Output Ratings:
Maximum: 1.5 amps
Minimum: 40 mA
Inrush: 15 amps
Time Delay: .03-10 min. adjustable

Installation
1.Disconnect power.
2.Connect terminals in series with the starting device as shown in the system diagram below.
3.For 24 VAC circuits, apply control as packaged. For 120/240 VAC circuits, cut the jumper wire.
4.Select the desired time delay.
5.Reapply power, check operation.

Mode of Operation
Upon application of power, the load is energized. When the thermostat opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period.
The QD-072 provides true thermostat interruption protection, even in the presence of a trickle current.
