A43H A37H A38Y Flanged type Spring loaded safety valve

A43H A37H A38Y Flanged type Spring loaded safety valve

Item:A43H A37H A38Y Flanged type Spring loaded safety valve

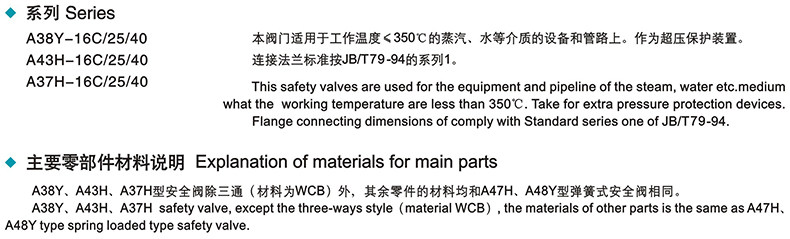

Short Description: This safety valves are used for the equipment and pipeline of the steam, water etc.medium what the working temperature are less than 350℃. Take for extra pressure protection devices.Flange connecting dimensions of comply with Standard series one of JB/T79-94.

Code:A37H-16C,A43H-16C;A37H-25,A43H-25;A37H-40,A43H-40;A38Y-16C;A38Y-16C;A38-25;A38Y-40 … …(See below).

Size/Dimension:DN40,DN50,DN65,DN80,DN100,DN125,DN150,DN200,DN250

Place of origin: China , Sell to worldwide.

Order or Inquiry on “A43H A37H A38Y Flanged type Spring loaded safety valve”
Models and details of  “A43H A37H A38Y Flanged type Spring loaded safety valve”

Due to the special nature of the safety valve, after receiving the product, the user needs to get the inspection by the pot inspection. It can be used only after the parameters are qualified. The setting pressure must be set and debugged before leaving our factory according to the user`s actual requirements.Therefore, please be sure to inform us for these pressure parameters requirement after you order, otherwise it will not be shipped.

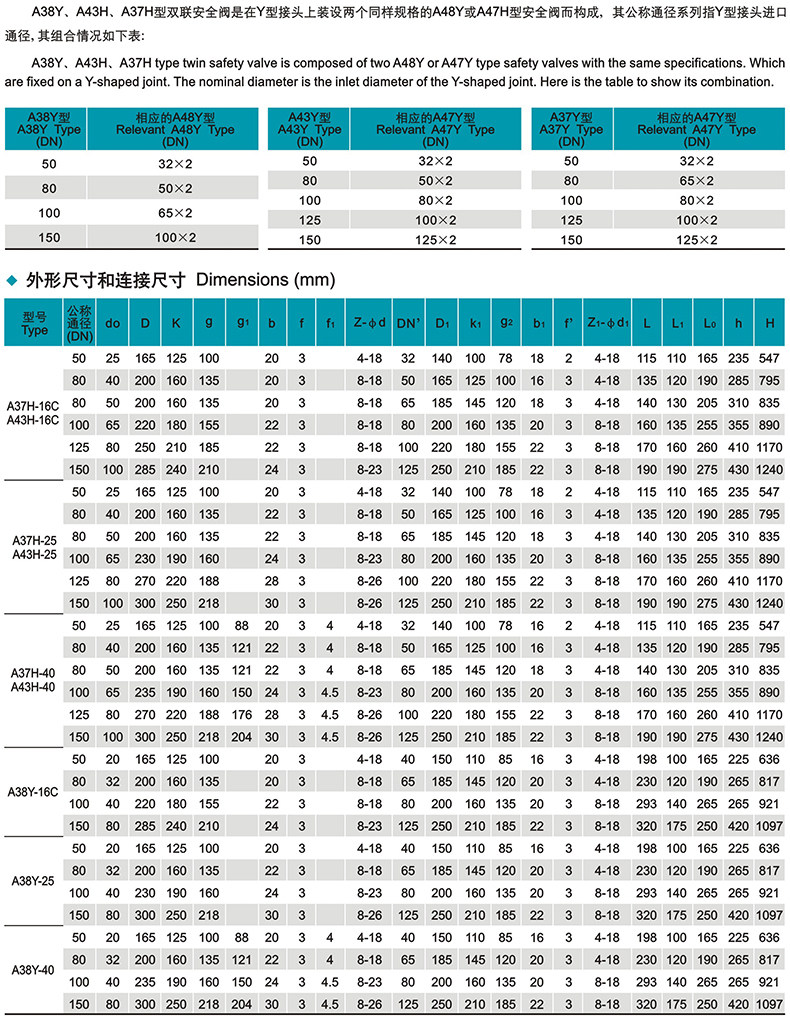

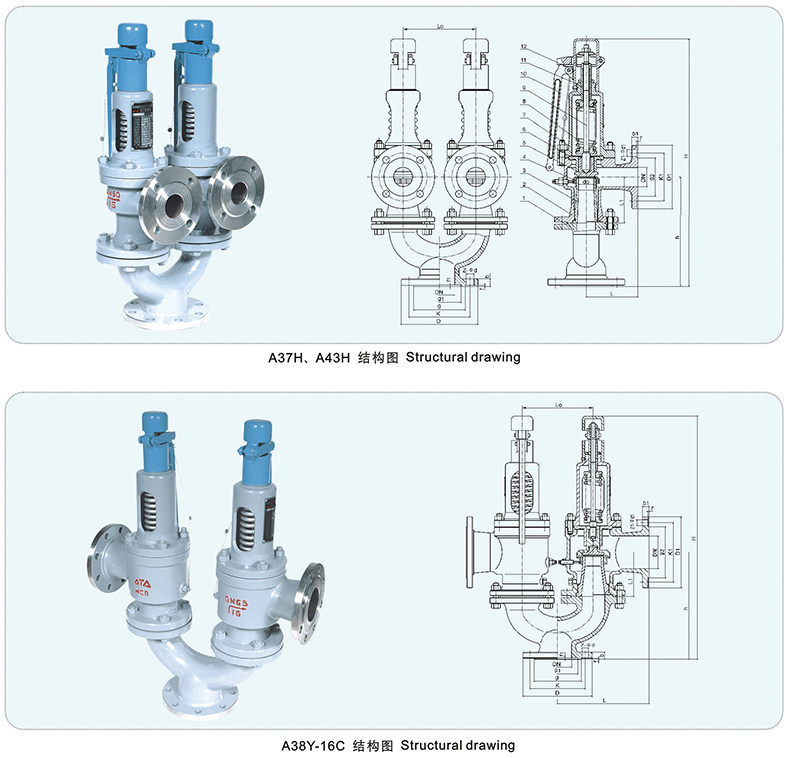

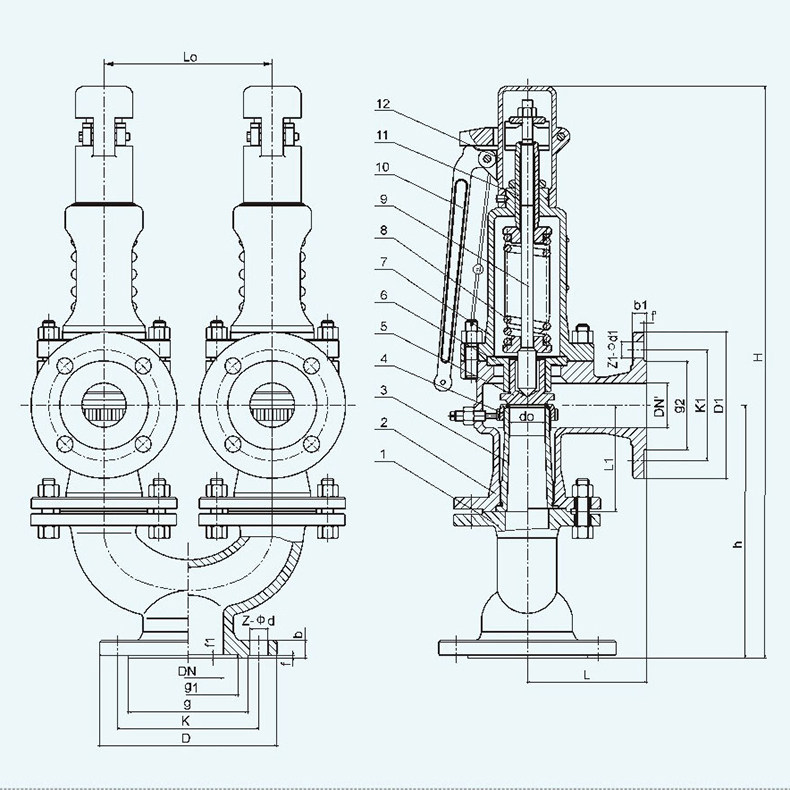

A43H A37H A38Y Flanged type Spring loaded safety valveA43H A37H A38Y Flanged type Spring loaded safety valve designA43H A37H A38Y Flanged type Spring loaded safety valve dimensionthe conditioning pressure class of safety valve and performance standards

Buying guide to “A43H A37H A38Y Flanged type Spring loaded safety valve ”
  • The item  is available for retail and wholesale;
  • The item is very heavy,usually,we suggest delivery by sea only for large DN.The place of origin is in China,when you buy one or two,please consider freight(by air or by sea) into the cost;
  • Accept bulk order with Container delivery;
  • Please contact us to email: sale@smartclima.com
